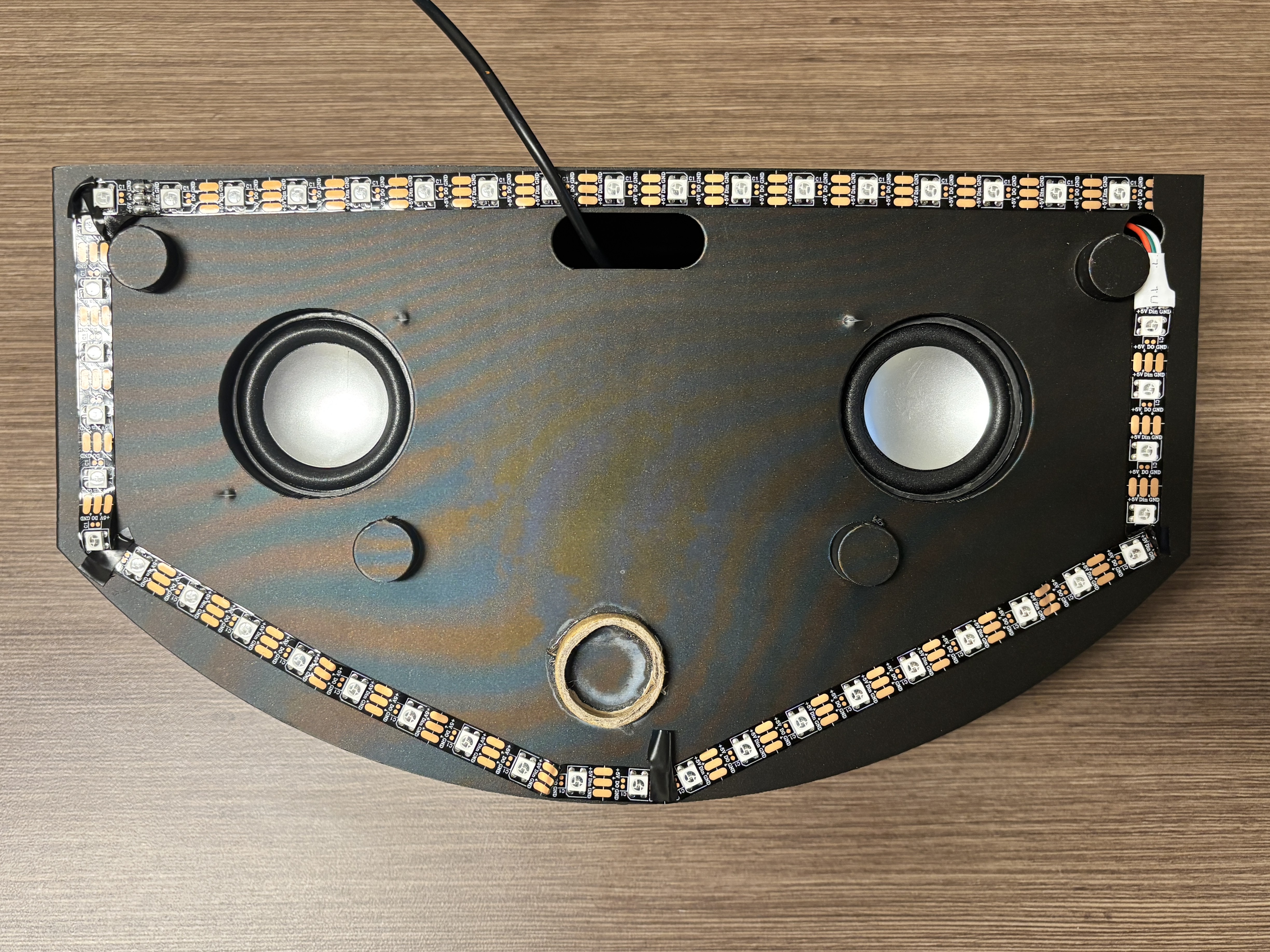

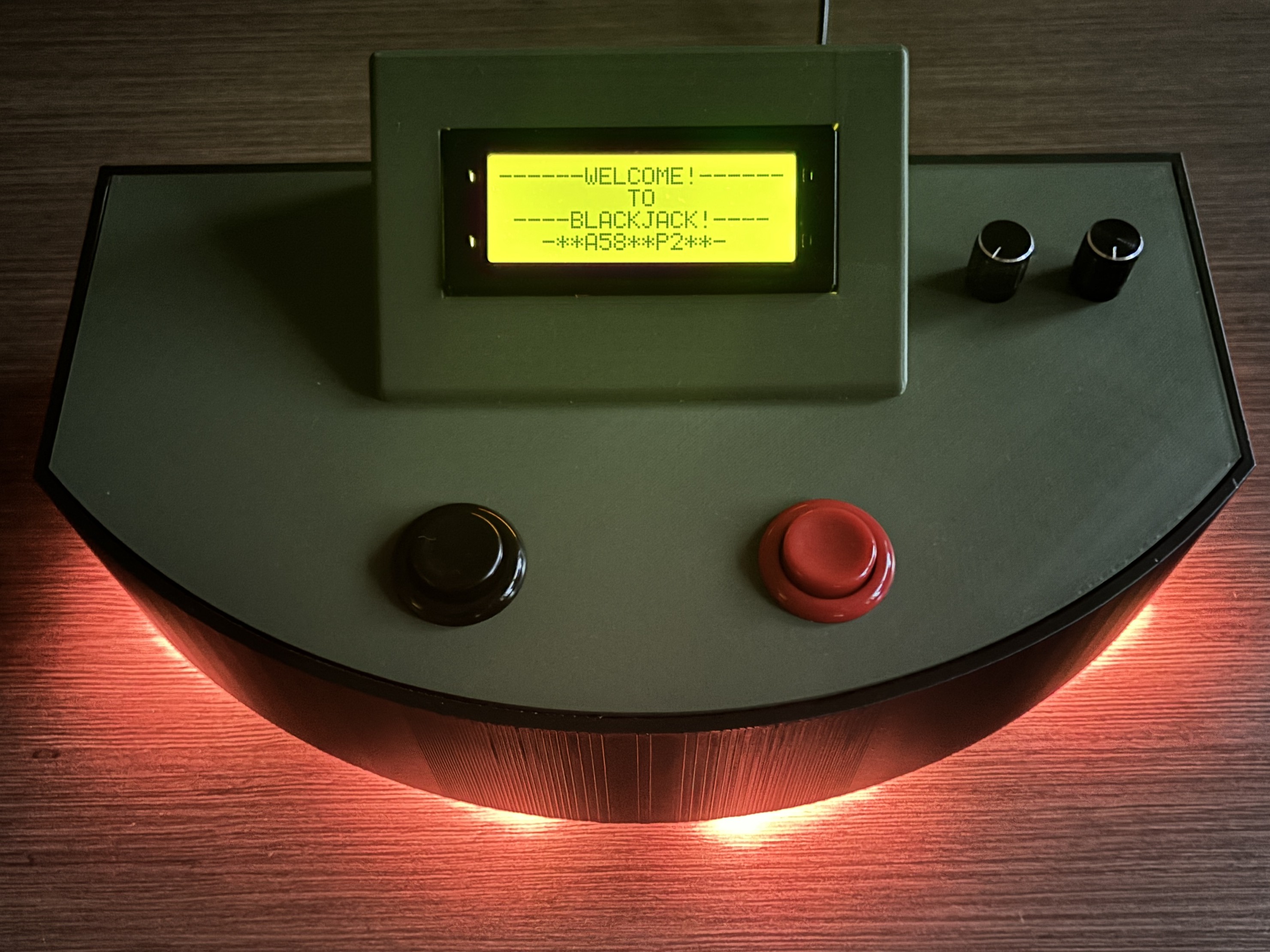

Blackjack
An Arduino based Blackjack game with speakers and addressable LEDs
About this project
Project Overview: This project served as my Engineering
Design Division (EDD) capstone, where I led the modification of an Arduino-based text
adventure game. My key technical contributions include:
-

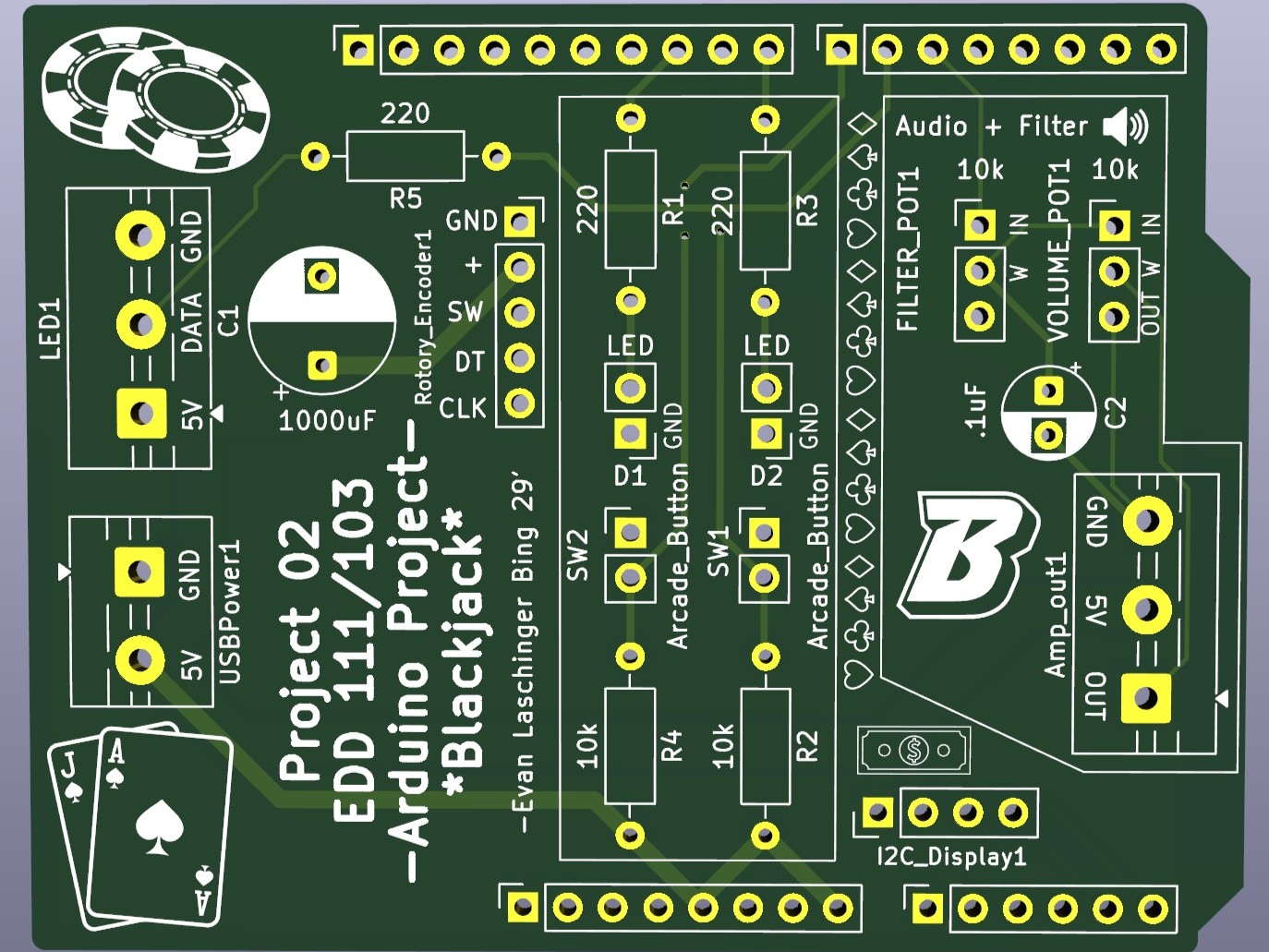

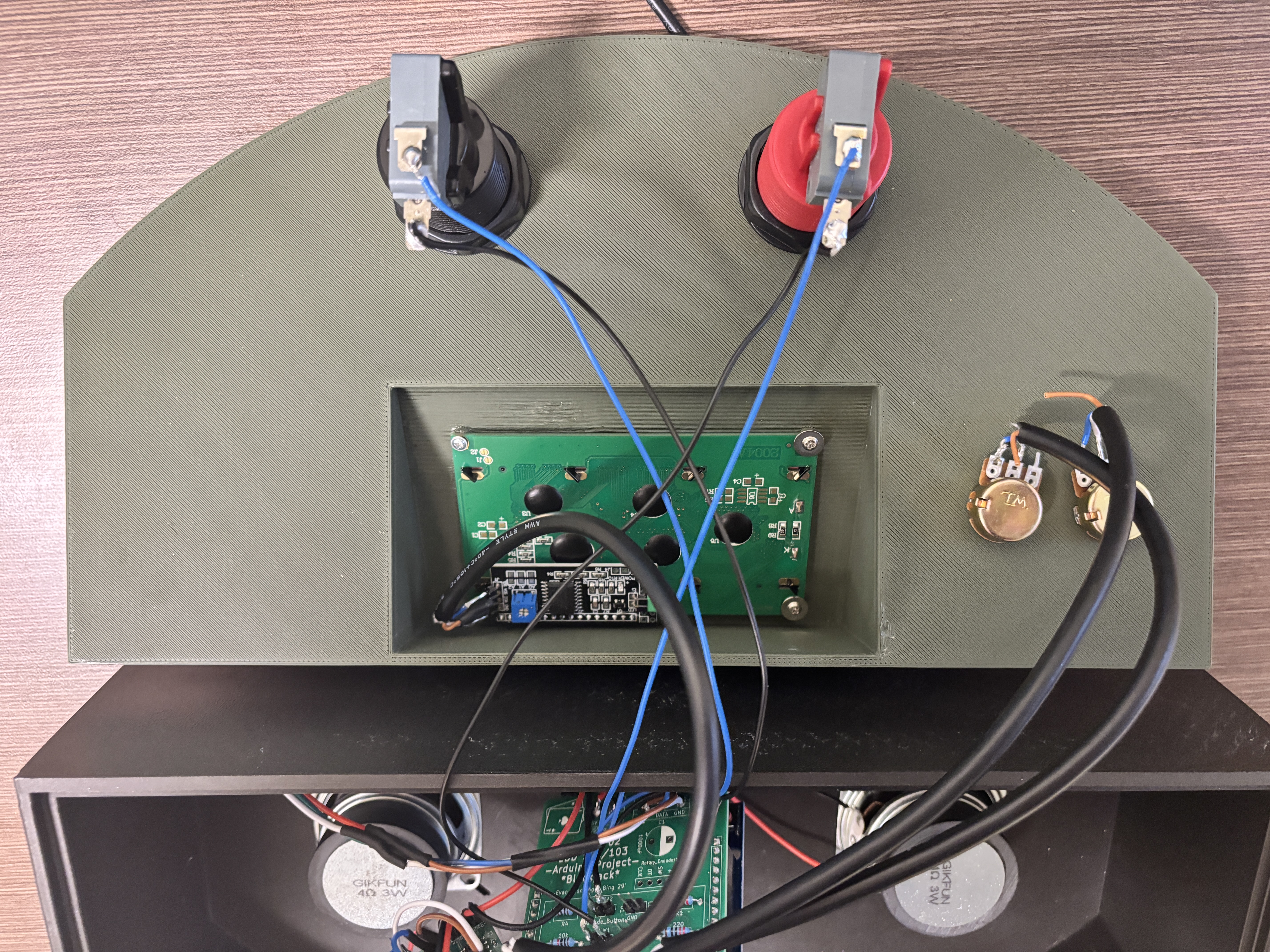

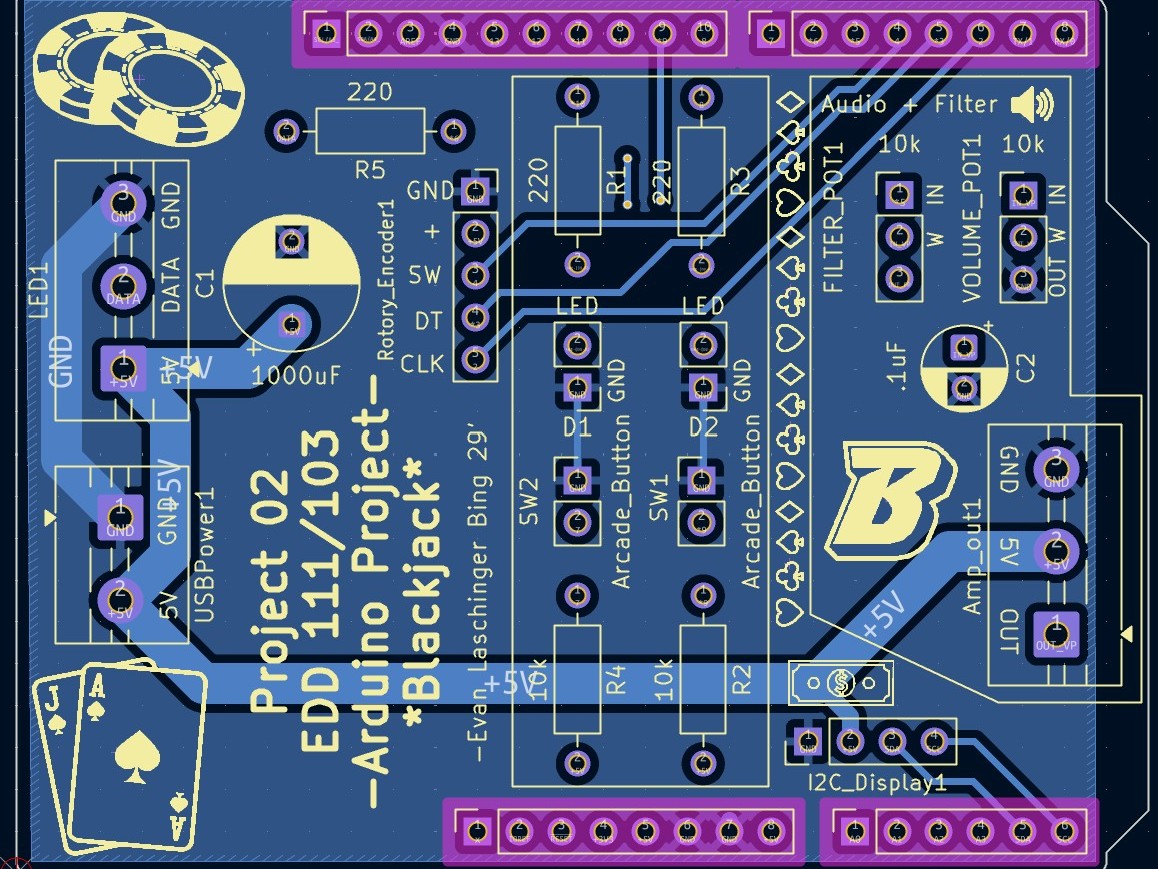

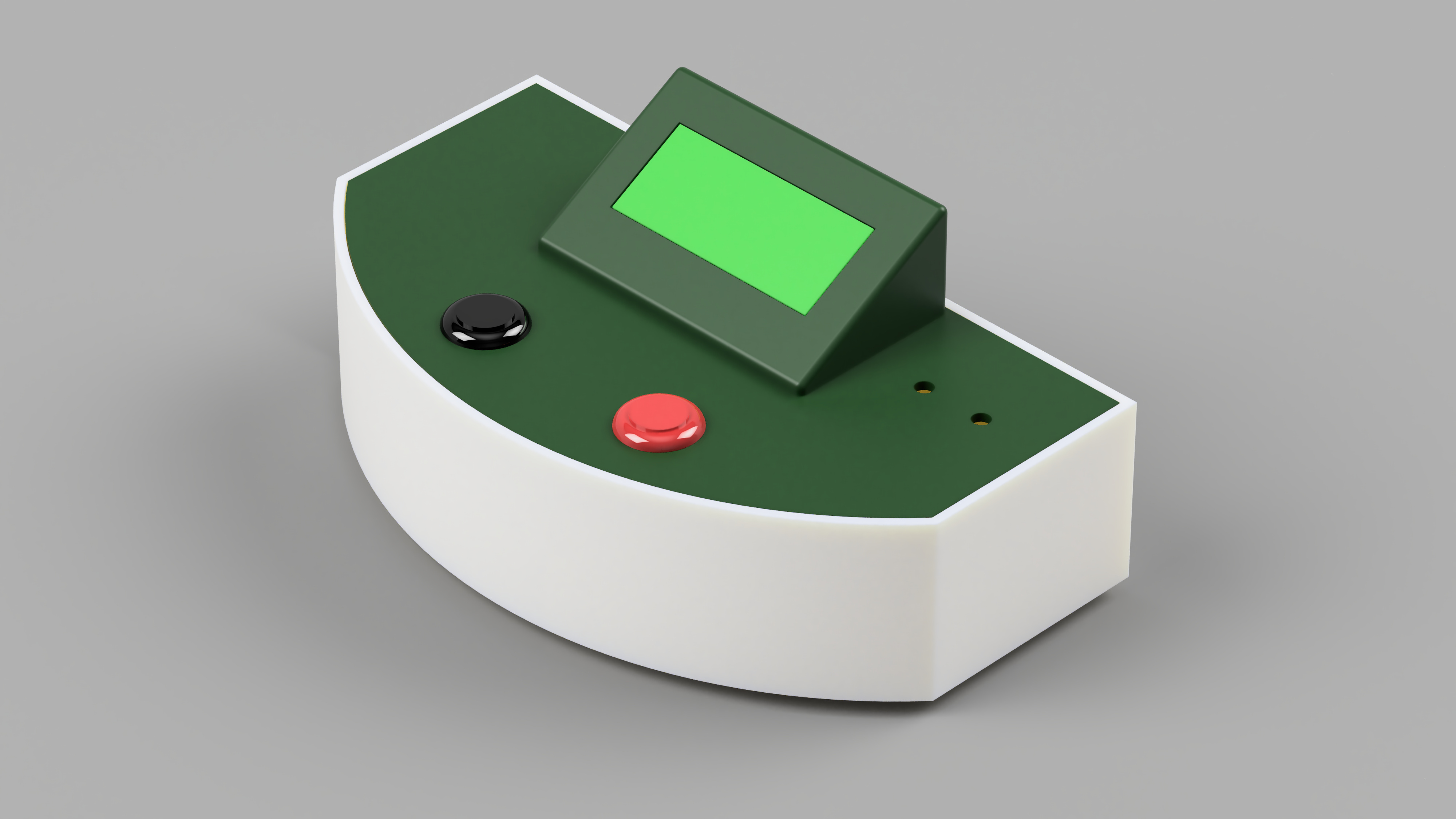

Hardware Engineering: Designed the program's first-ever
custom PCB using KiCad and created a blackjack-style enclosure, modeled in Fusion 360
and 3D printed.
-

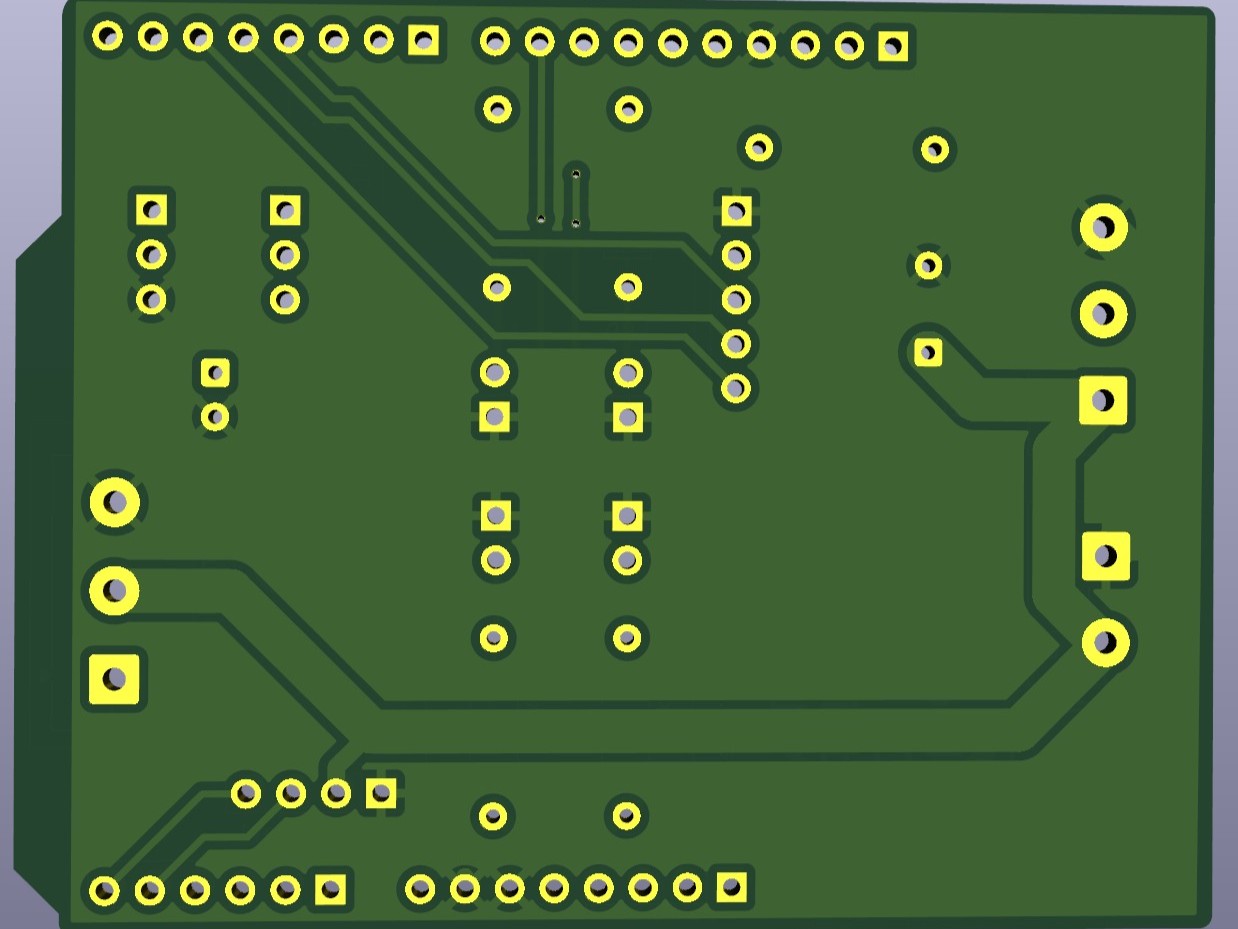

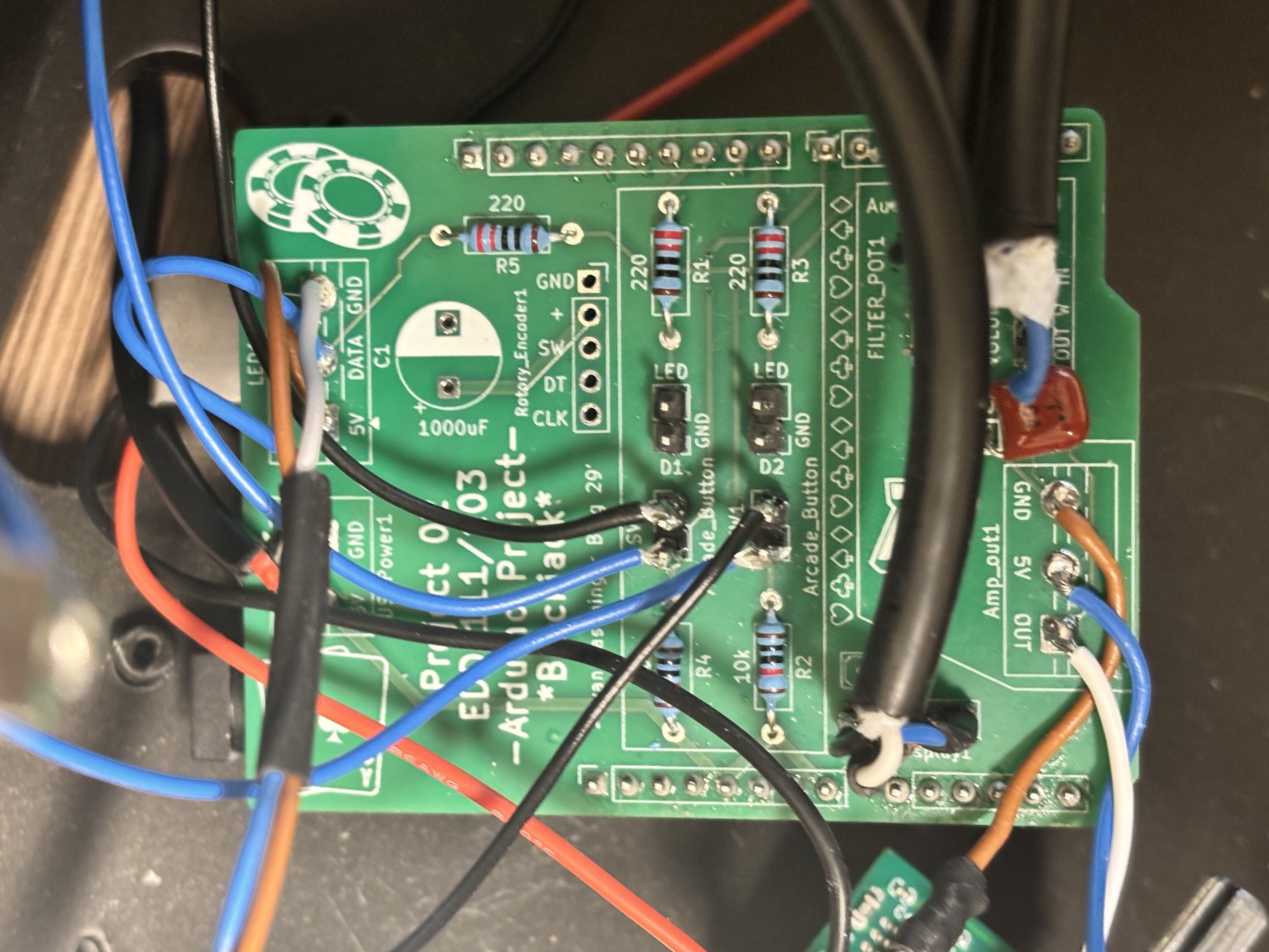

Circuit Design: Engineered a custom Arduino Shield
featuring an RC low-pass filter with a minimum cutoff frequency of 159 Hz to smooth PWM
square waves and eliminate harsh harmonic noise. The design includes optimized power
distribution to drive the LEDs, speaker, and screen while maintaining temperatures
within safe limits.
-
Software Development: Led a complete overhaul of the
source code in C++, rewriting the game engine from the ground up using a state machine.
Integrated the FastLED library for LED lighting effects and music with gameplay, while
retaining only the core button input logic.

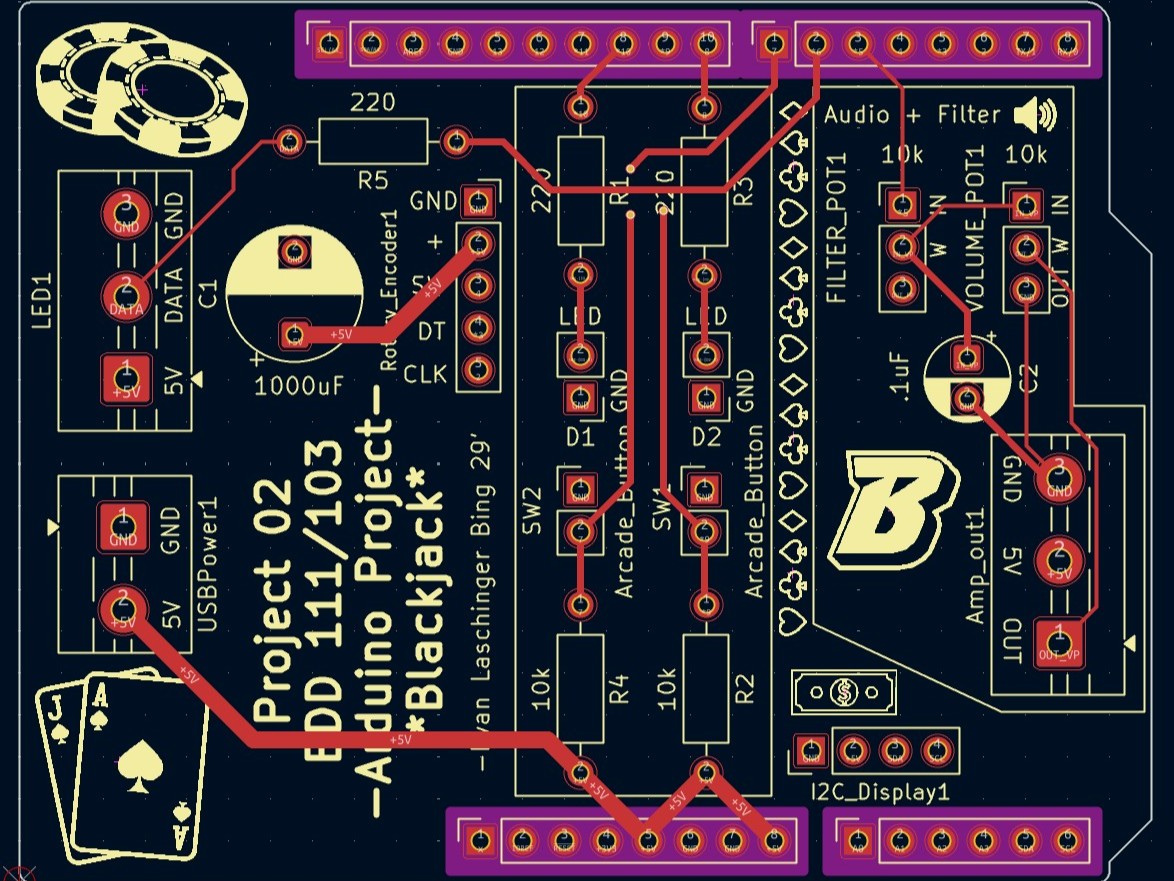

The biggest challenge was learning to use KiCad to design an effective board layout without
prior experience. I specifically focused on isolating the audio signal from the LED power

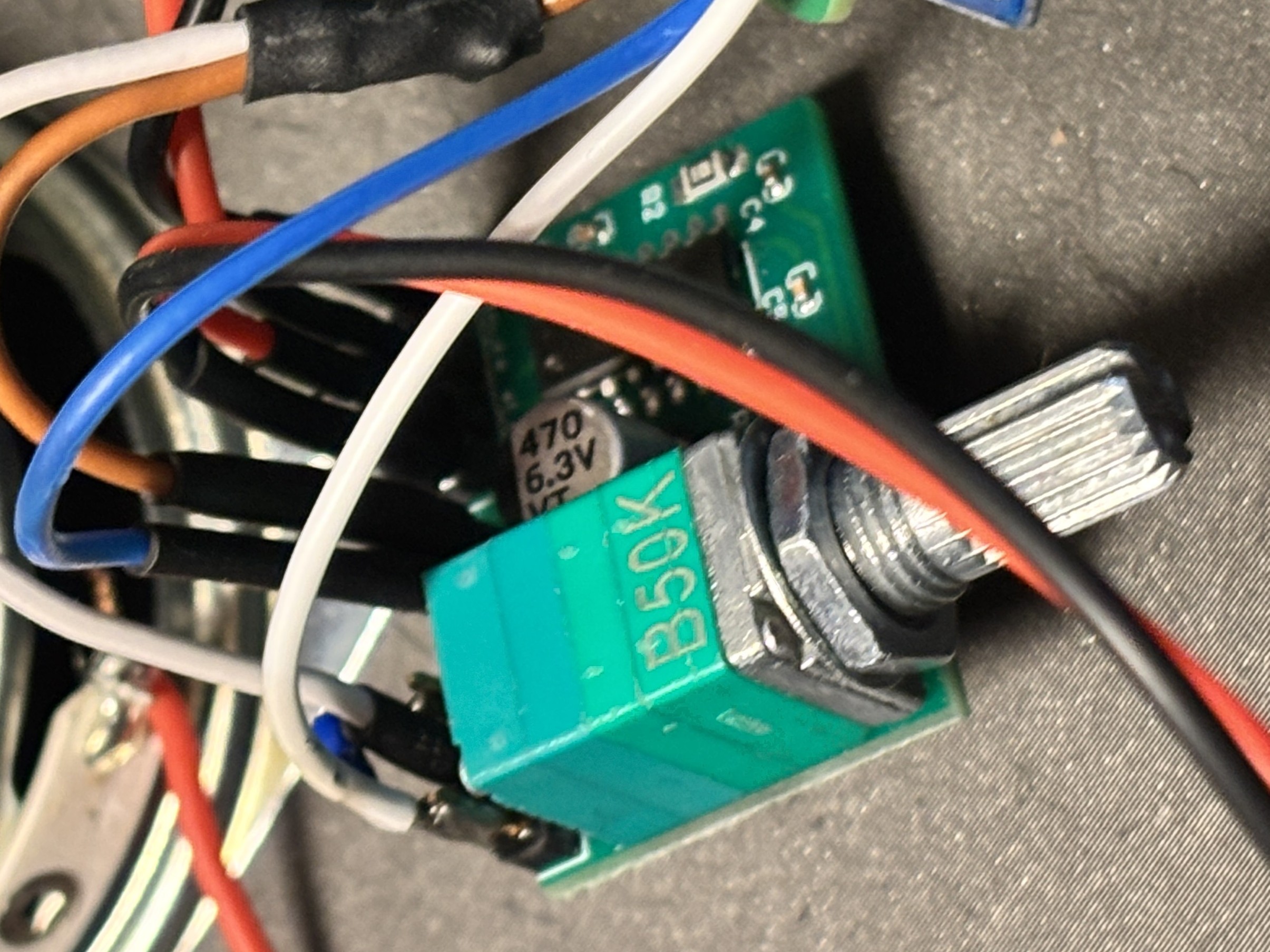

traces to minimize noise. The budget was also a major constraint, given the extensive
modifications required, including the arcade-style buttons, speaker, amplifier, larger
screen, and LED strip.
Technologies Used
- Fusion 360
- KiCad PCB
- 3D
Printing
- C++
- Soldering
- Arduino

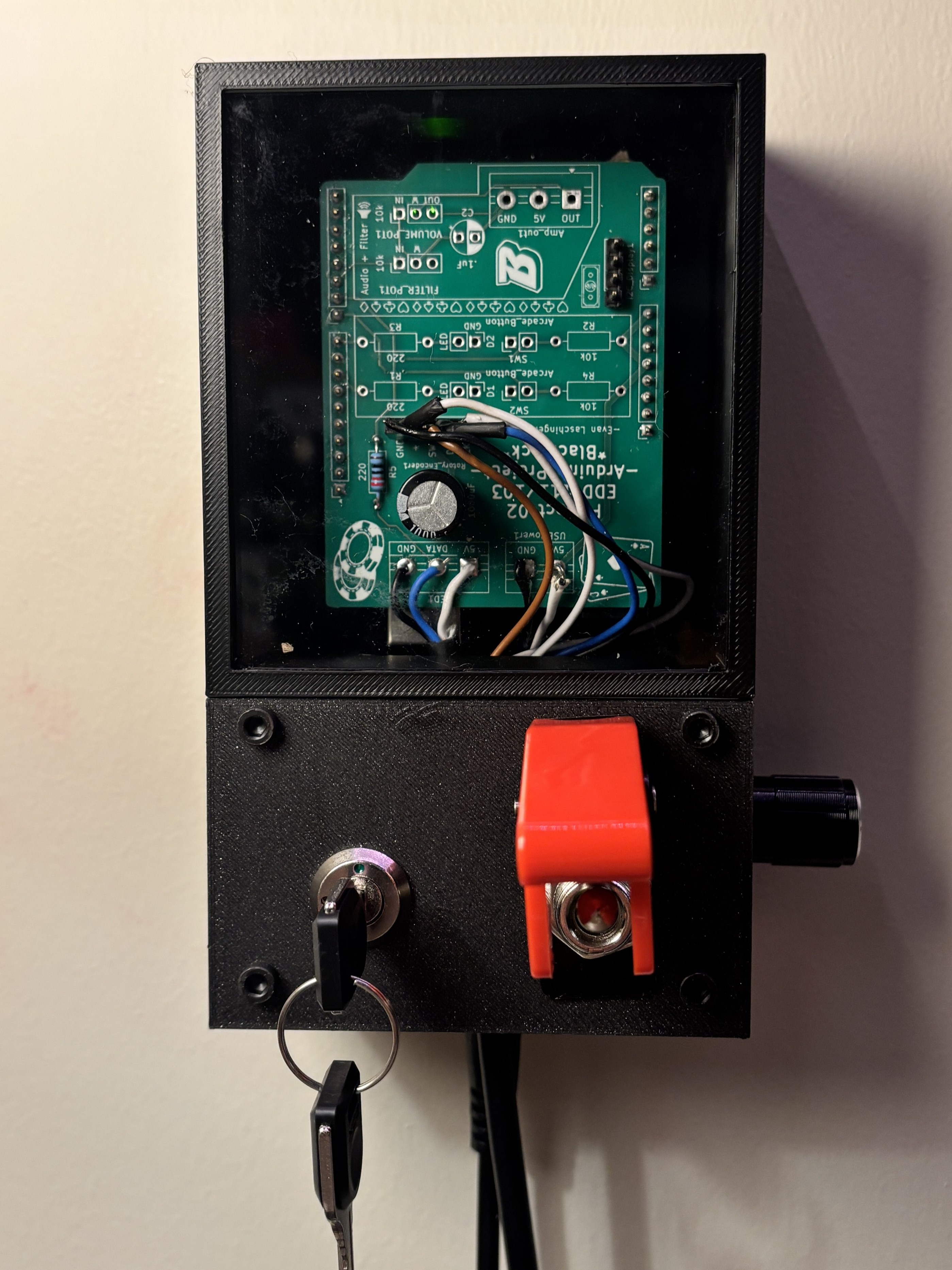

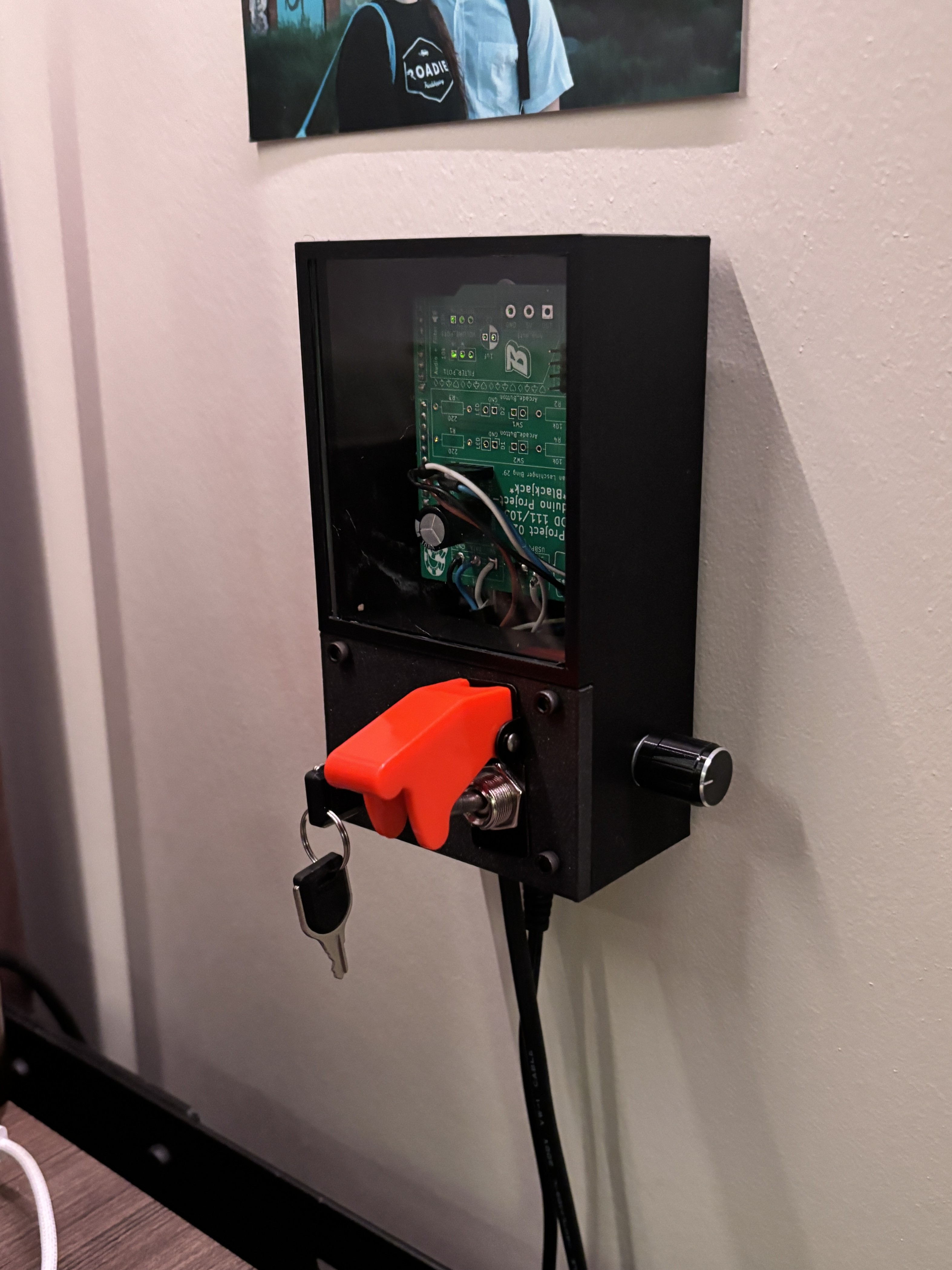

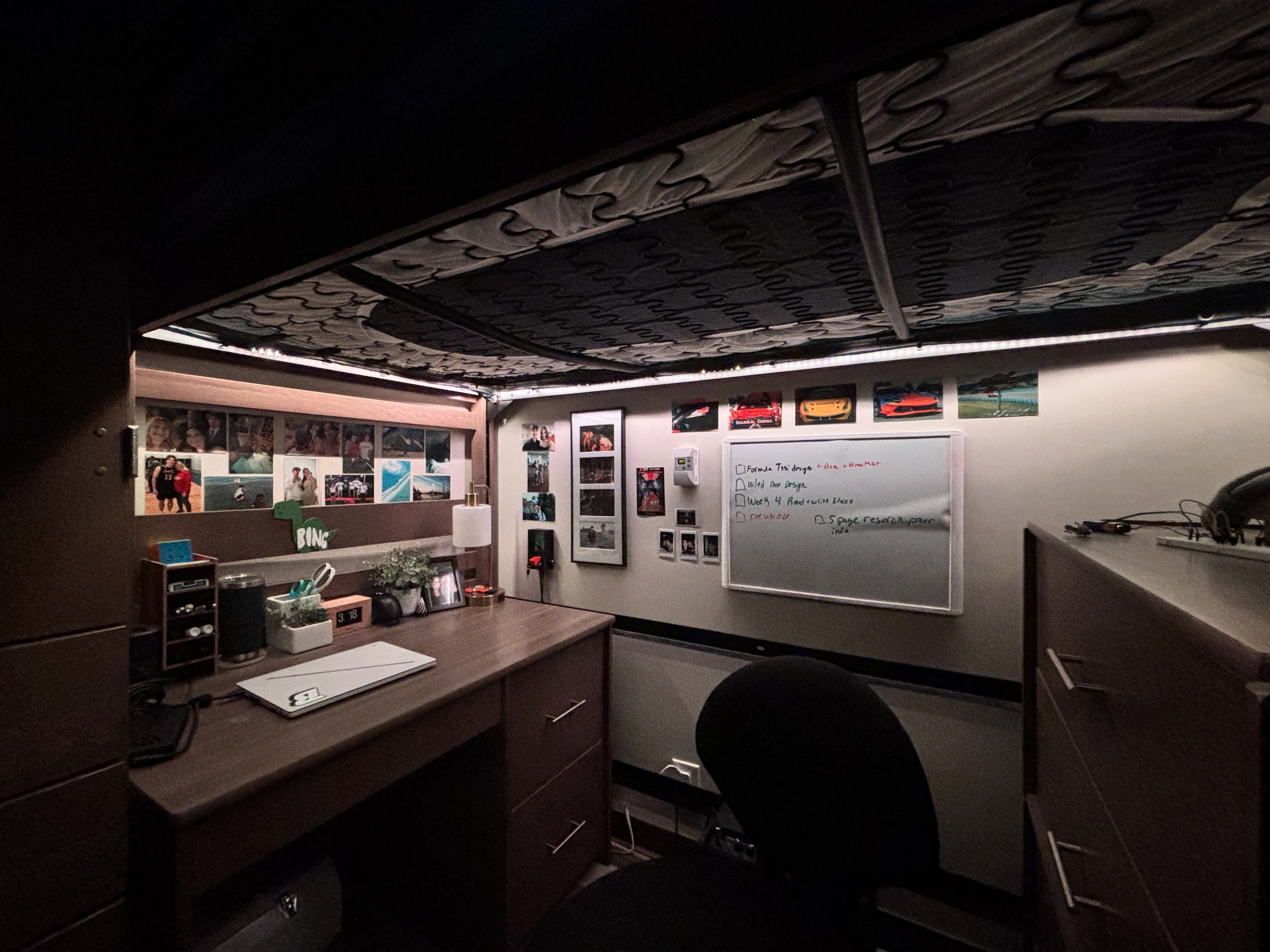

S.U.L. - Secure Under-Bed Lighting
A under-bed lighting solution with removable magnetic lights and key
switch
About this project
Project Overview: This independent engineering project
focused on designing and fabricating a custom lighting system for my dorm's lofted bed. I
completed the PCB design, component soldering, enclosure fabrication, and final
installation.
-

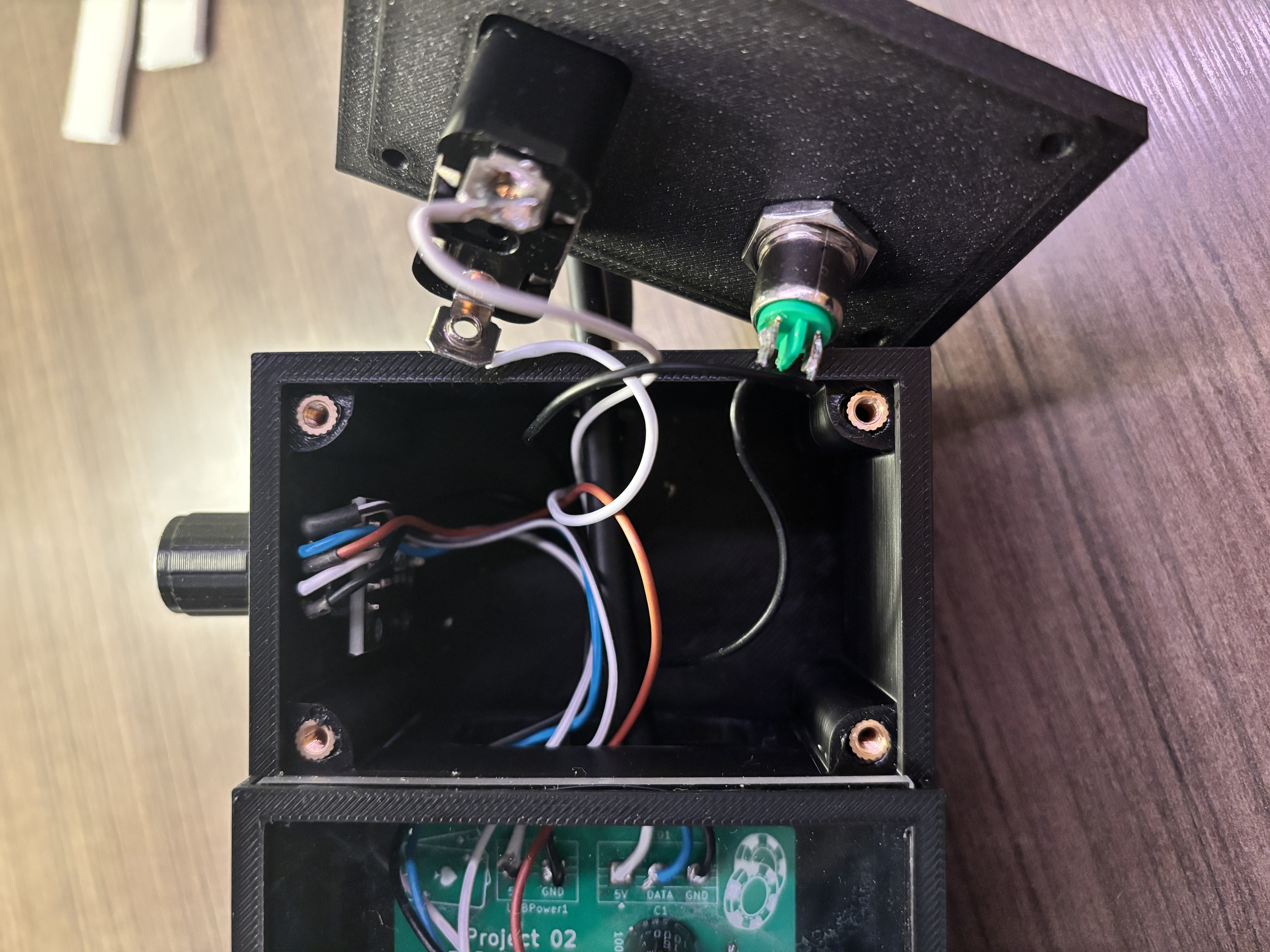

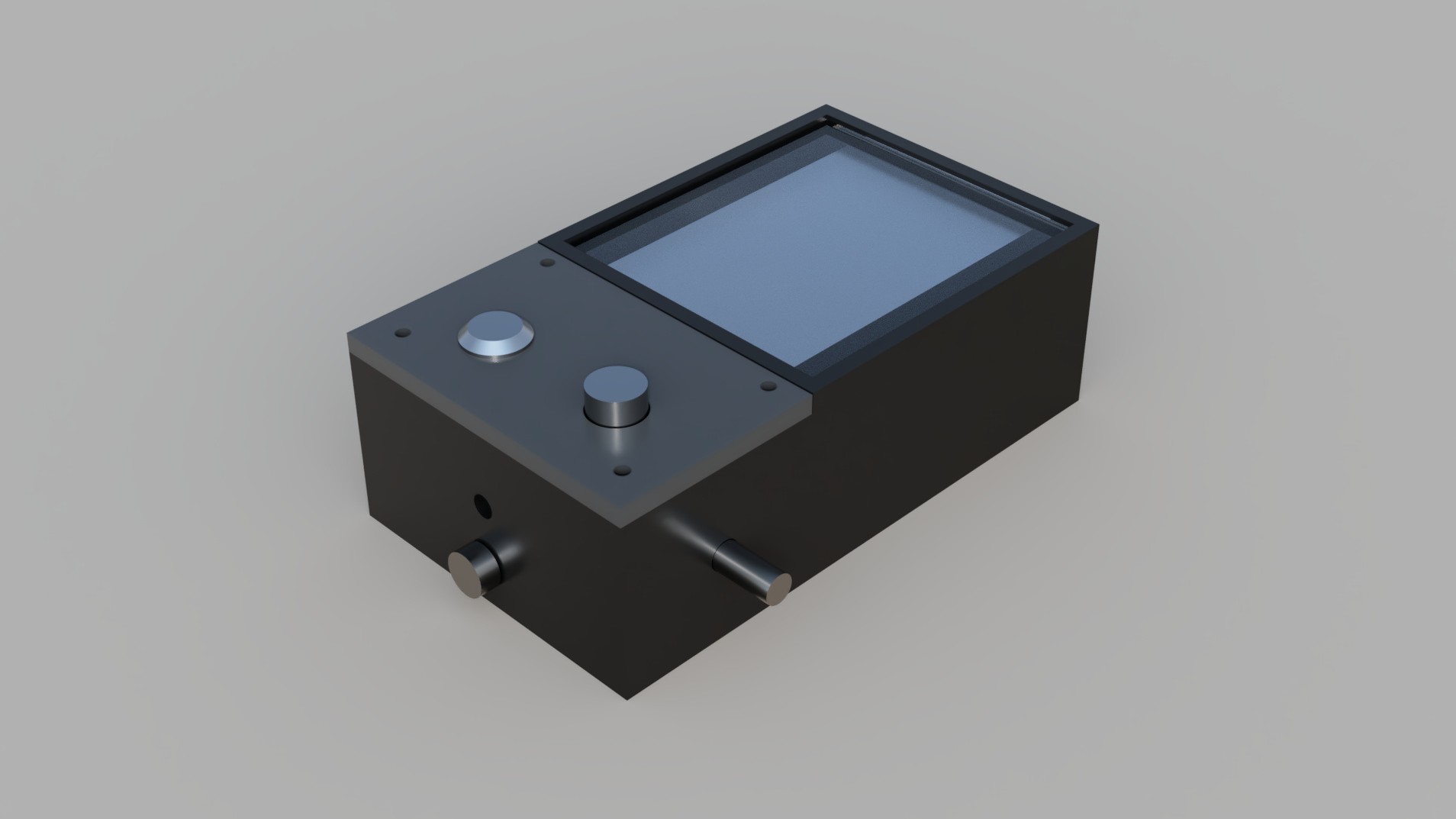

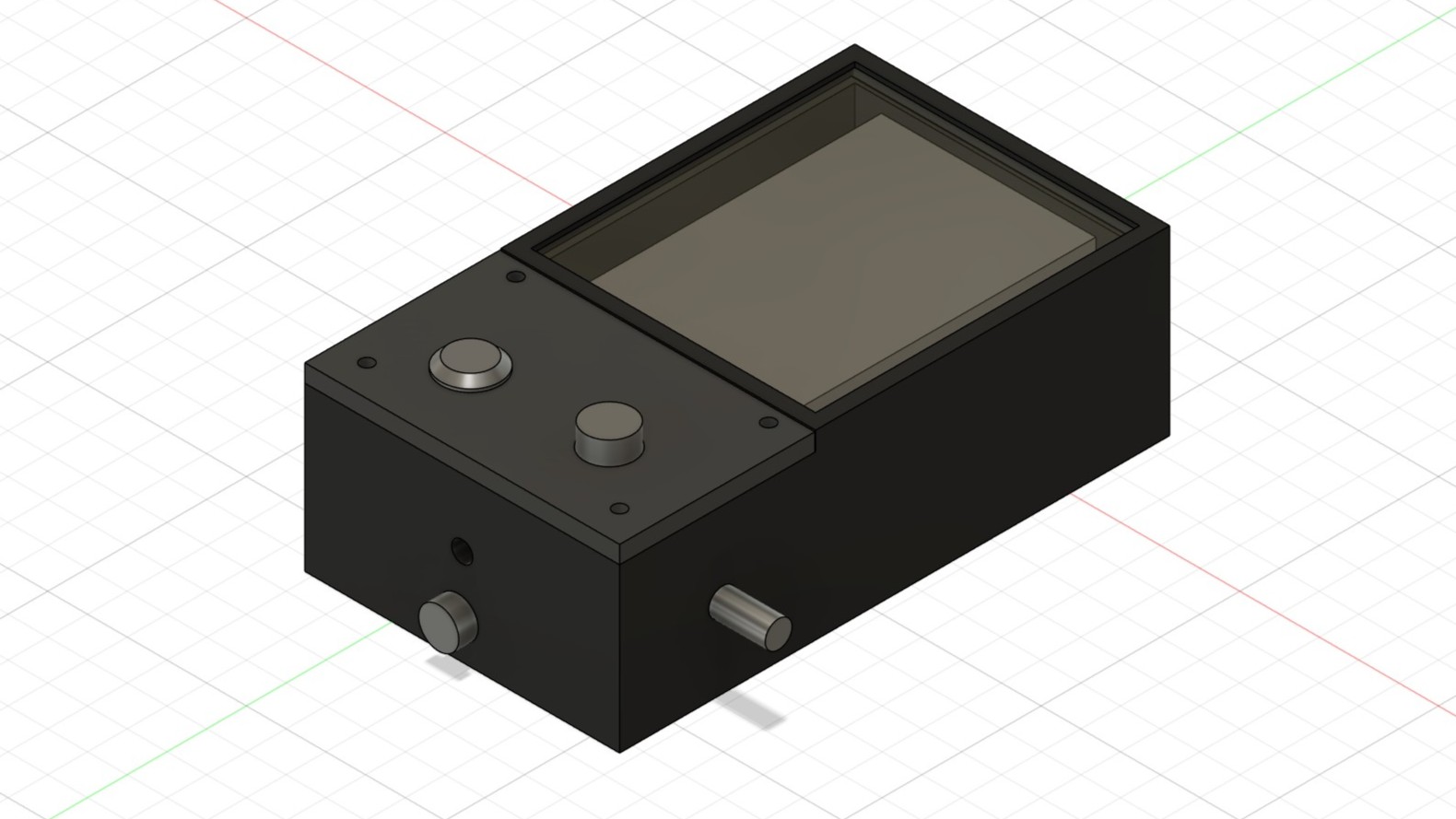

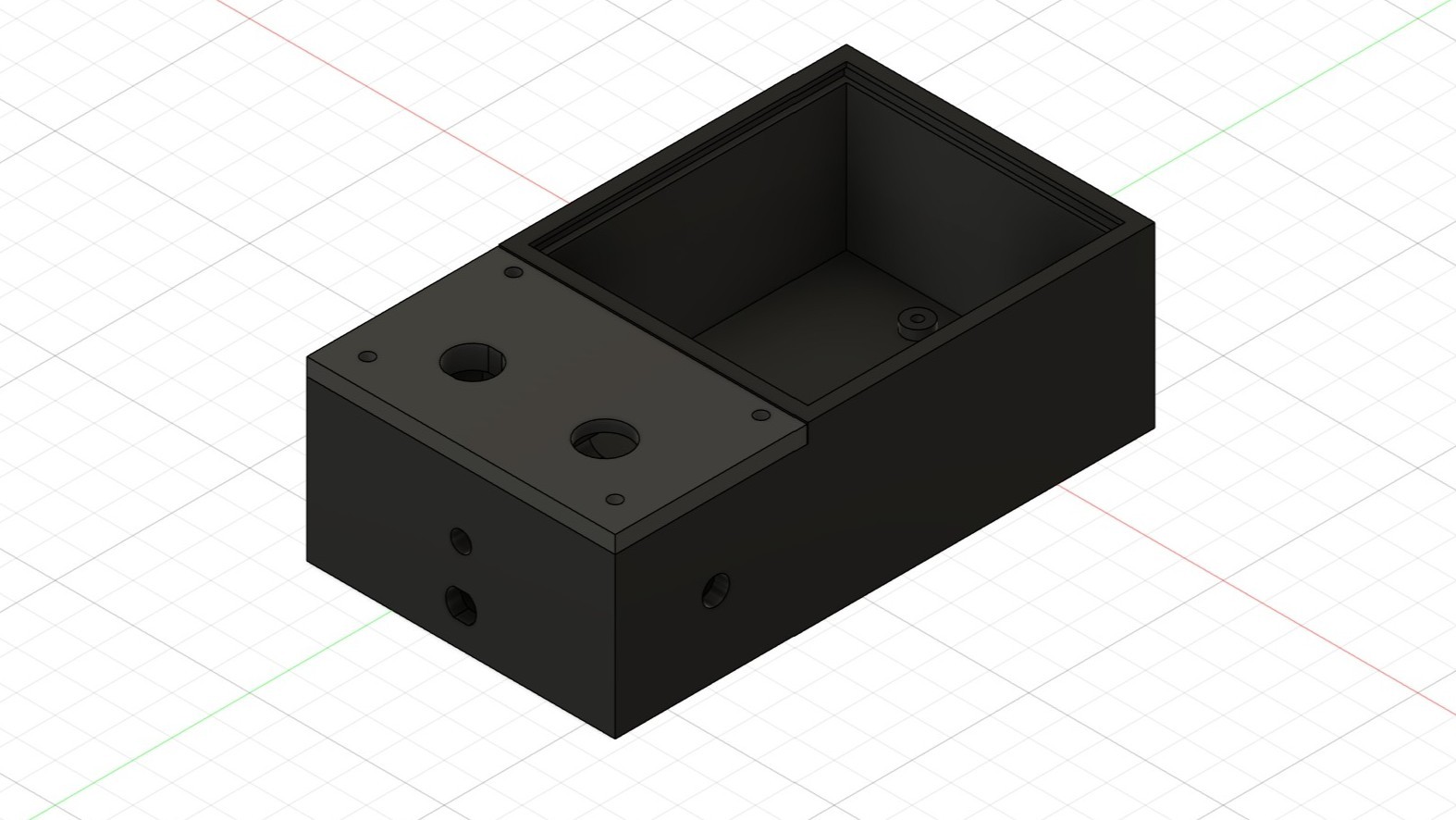

Hardware Engineering: The enclosure was modeled in CAD
and 3D printed; I added a laser-cut acrylic window and heat-set inserts to create a

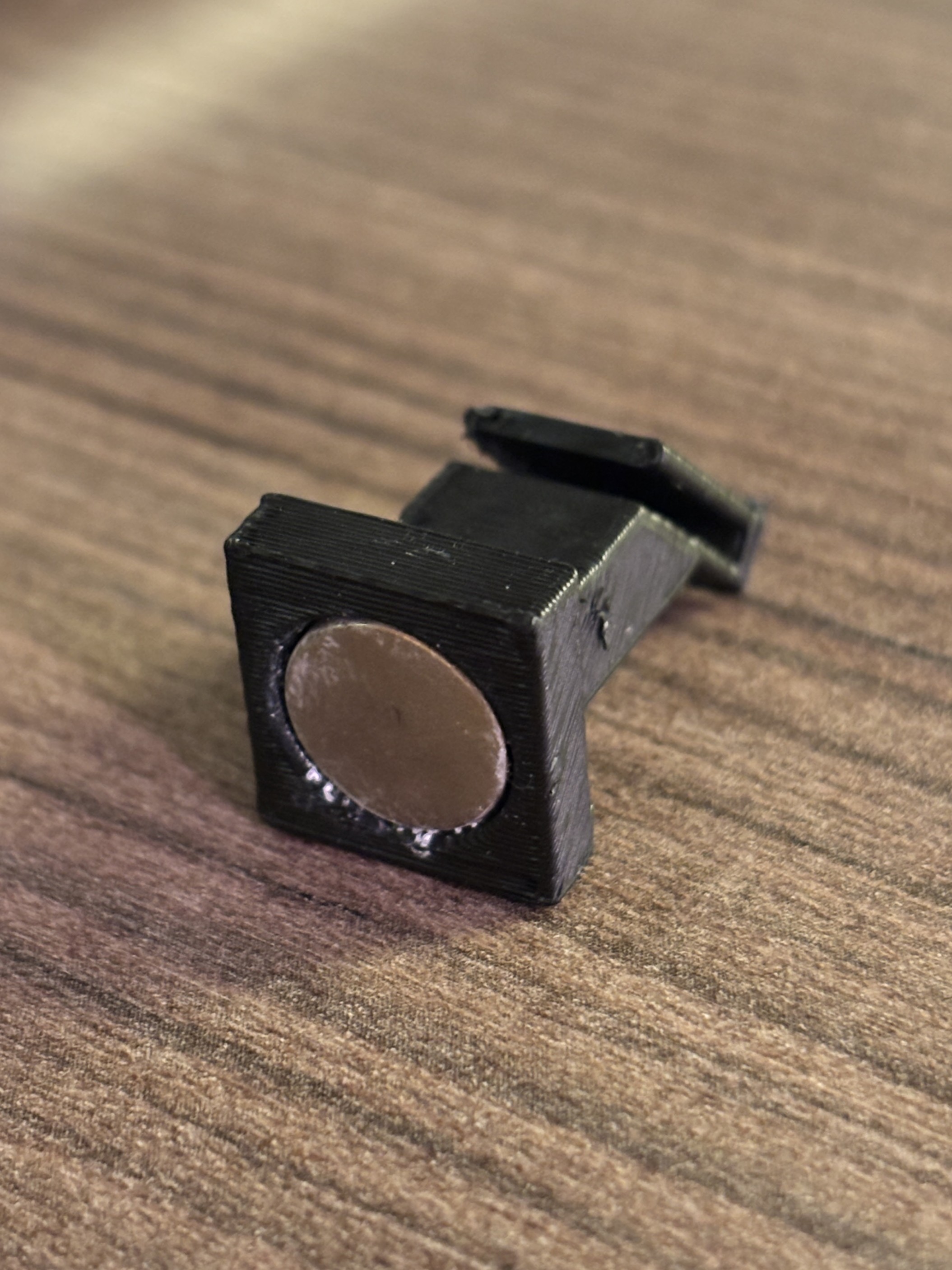

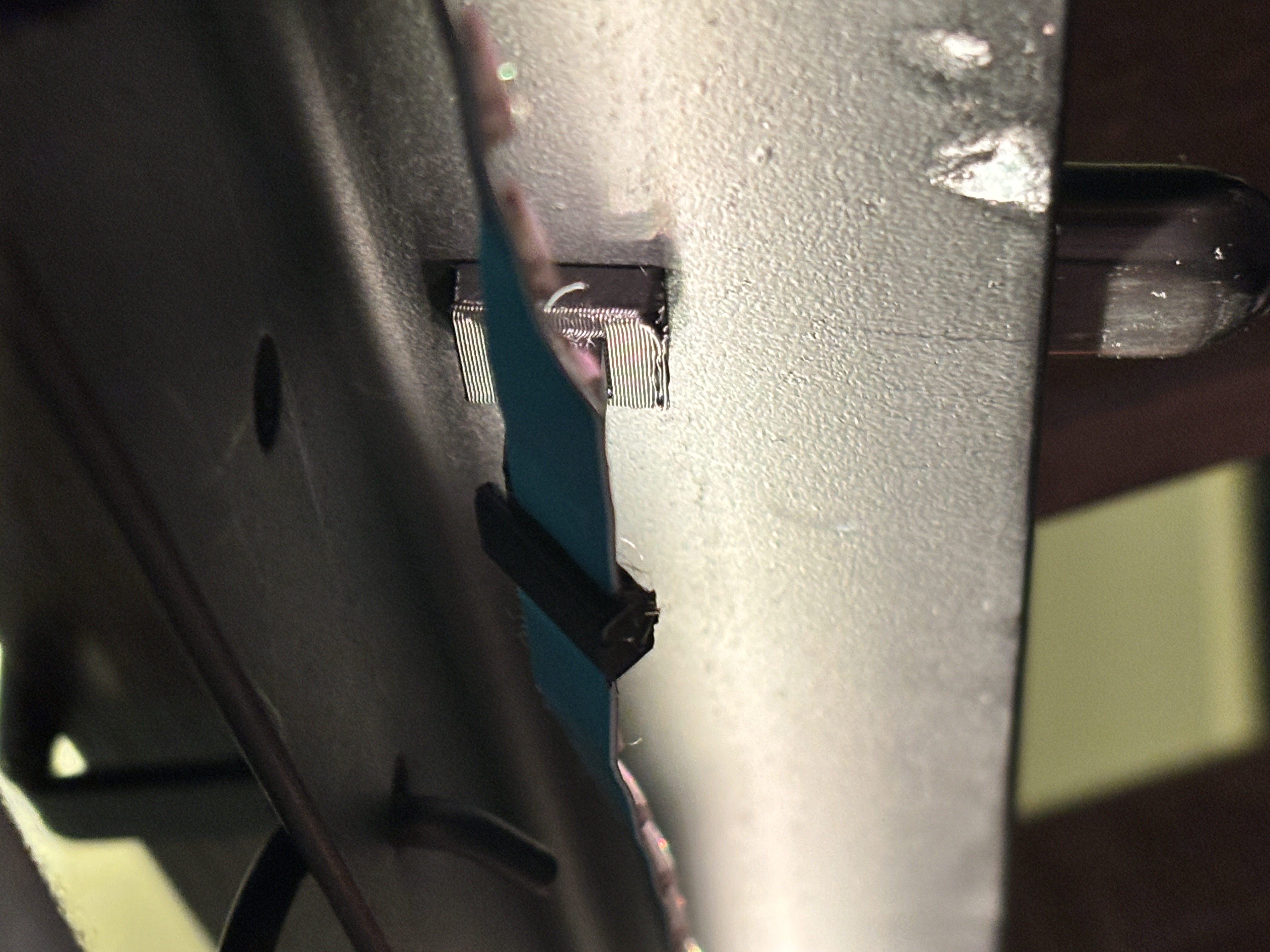

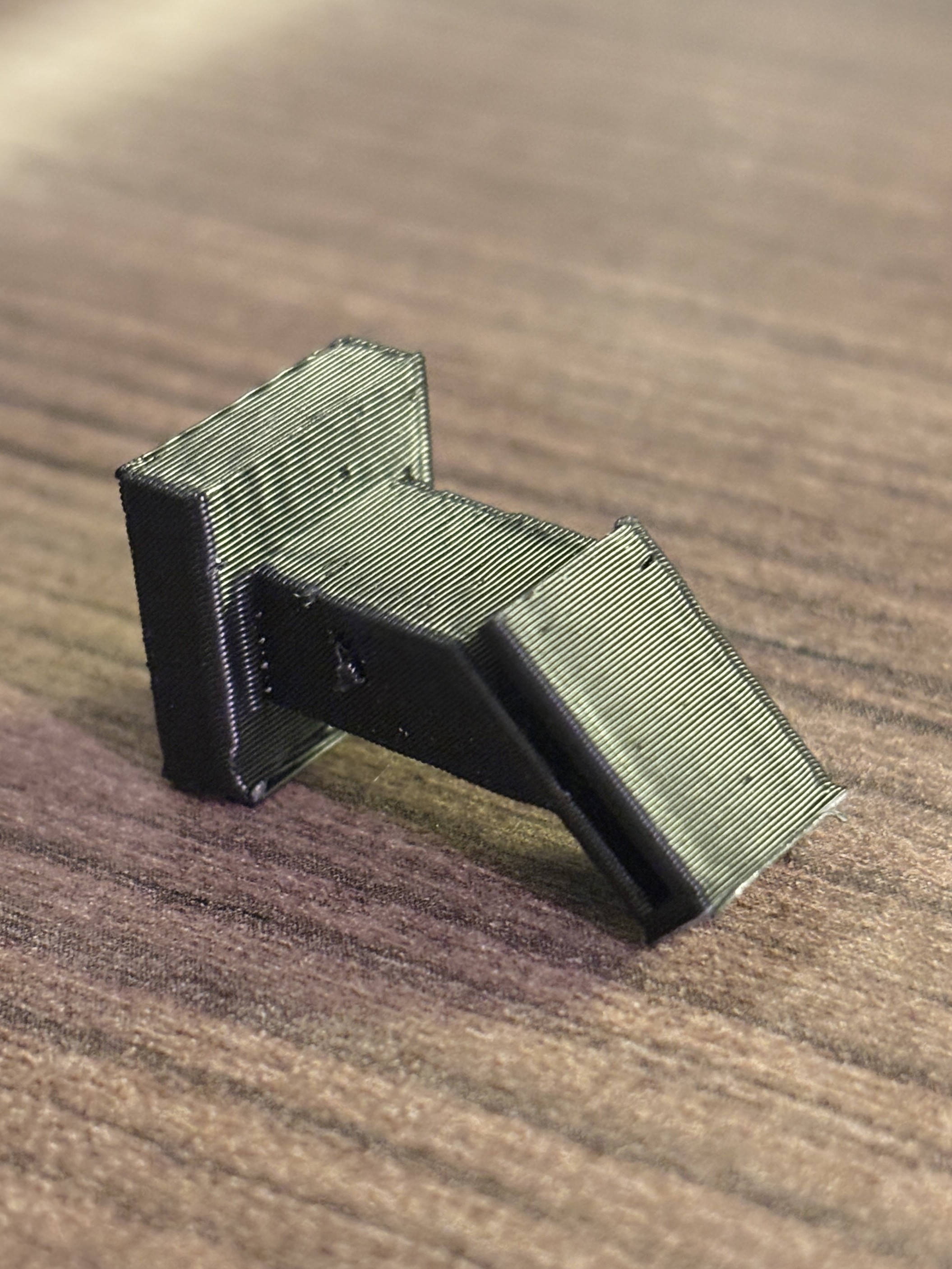

housing that is both serviceable and durable. I also created a simple magnetic mounting
system to ensure the bed would be undamaged by the LED strip. The mounting system also
allows the strip to be reused.
-

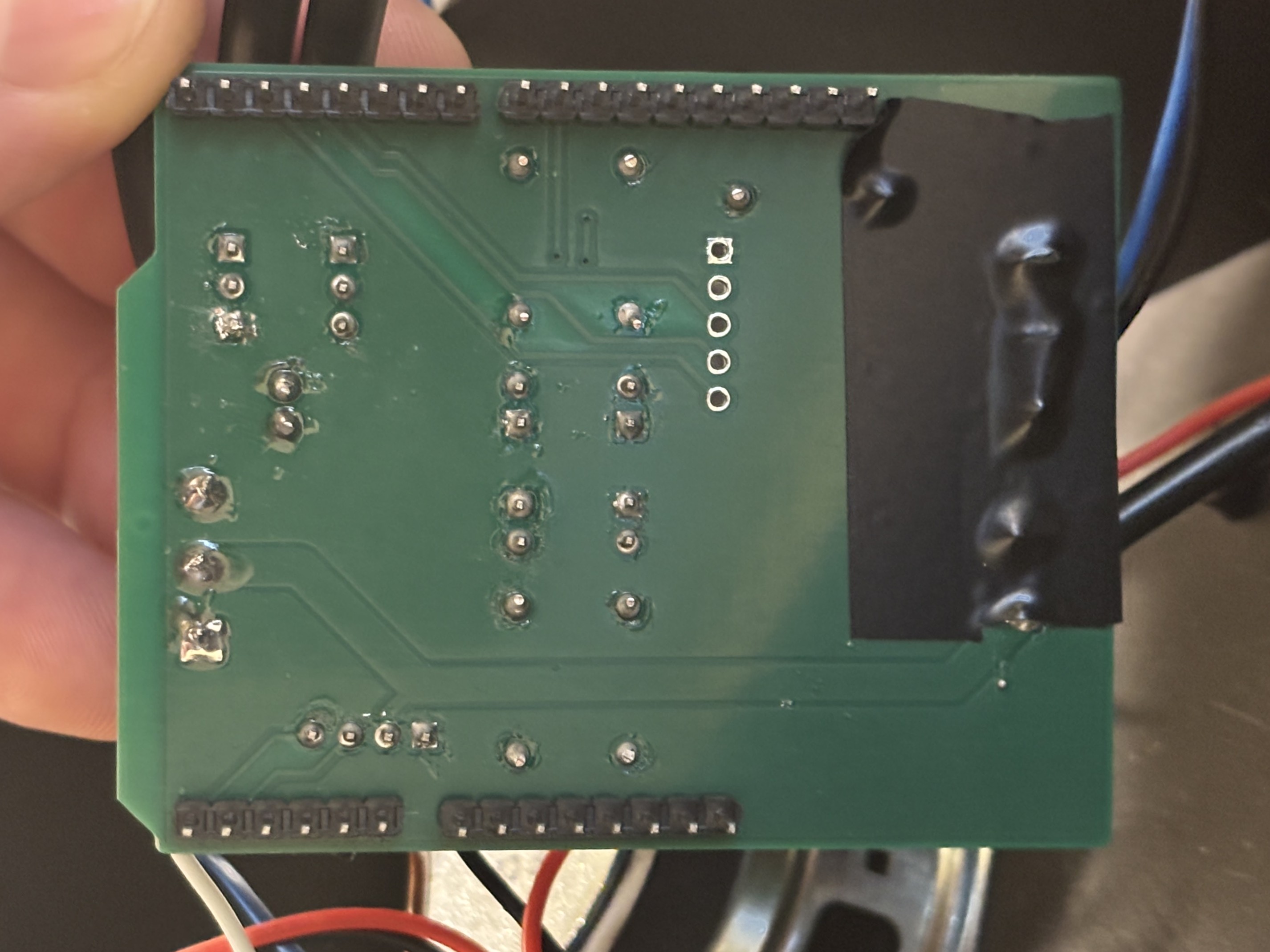

Circuit Design: I adapted a multi-purpose PCB (I
originally designed in KiCad for a Blackjack project) by adding a rotary encoder and
switches. The power distribution was already robust and capable of driving the 345 LEDs.
The system is powered by a 5A 5V barrel power supply.
-
Software Development: I developed firmware utilizing the
FastLED library to manage lighting effects. Implemented logic where a "long press" on
the rotary encoder shifts the system into a color temperature control mode, allowing for
adjustment between warm and cool lighting temperatures.
Challenges & Constraints: The primary design constraints were
physical footprint and cable management; the system needed to be easily accessible and
mounted non-destructively while keeping wires hidden. A major technical hurdle was solving
the voltage drop across the extended LED strip, which I successfully solved through wiring
modifications.
Technologies Used
PCB
Design
Soldering
Fusion
C++
3D
Printing
Reverse Engineering

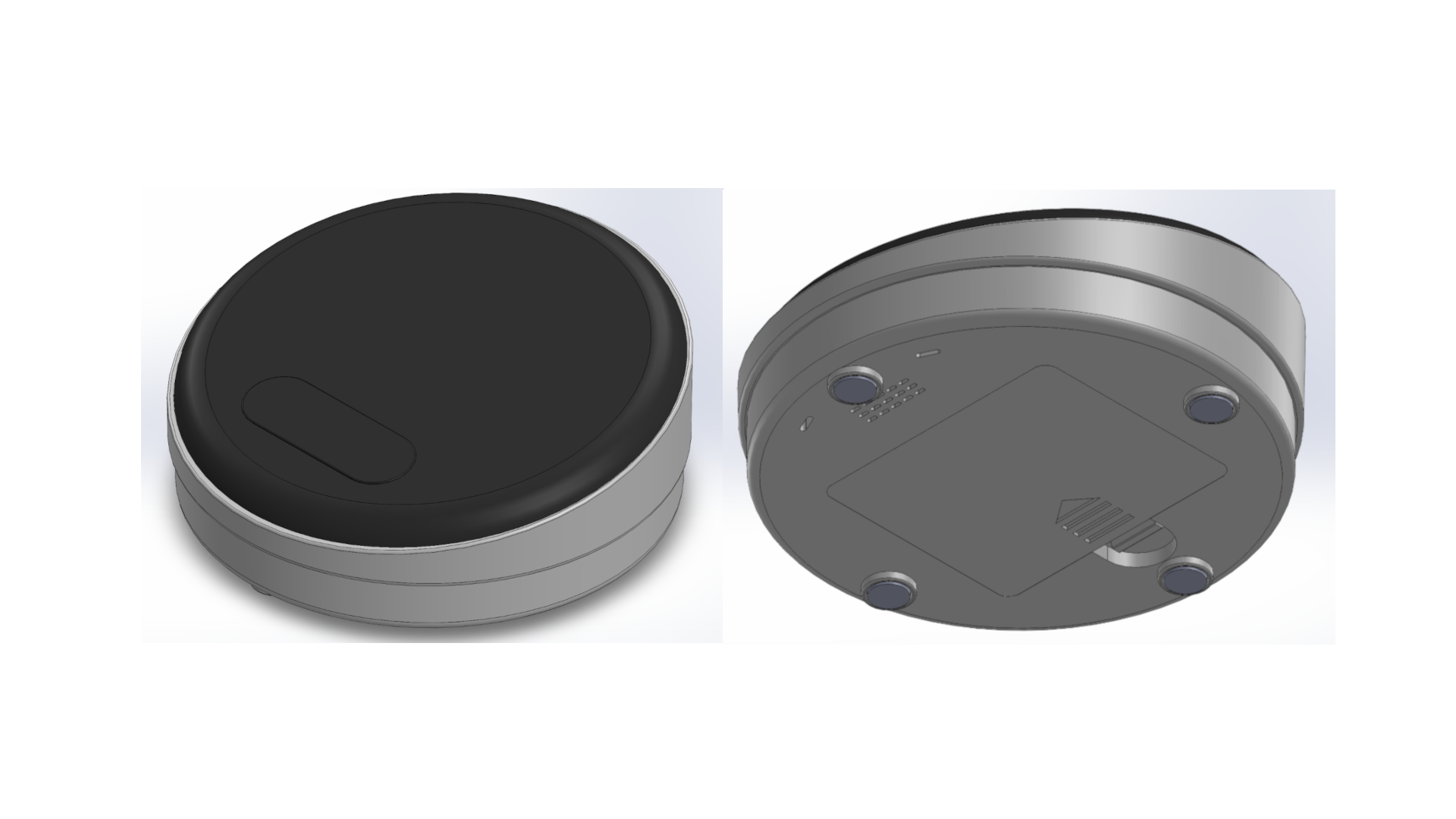

Analysis and CAD reconstruction of a Blood Pressure Monitor.
About this project
Project Overview: Collaborated with a team of engineering
students to perform a complete reverse engineering analysis of a commercial blood pressure
monitor. The project included disassembly, component modeling, functional analysis, and
identifying design improvements.
-

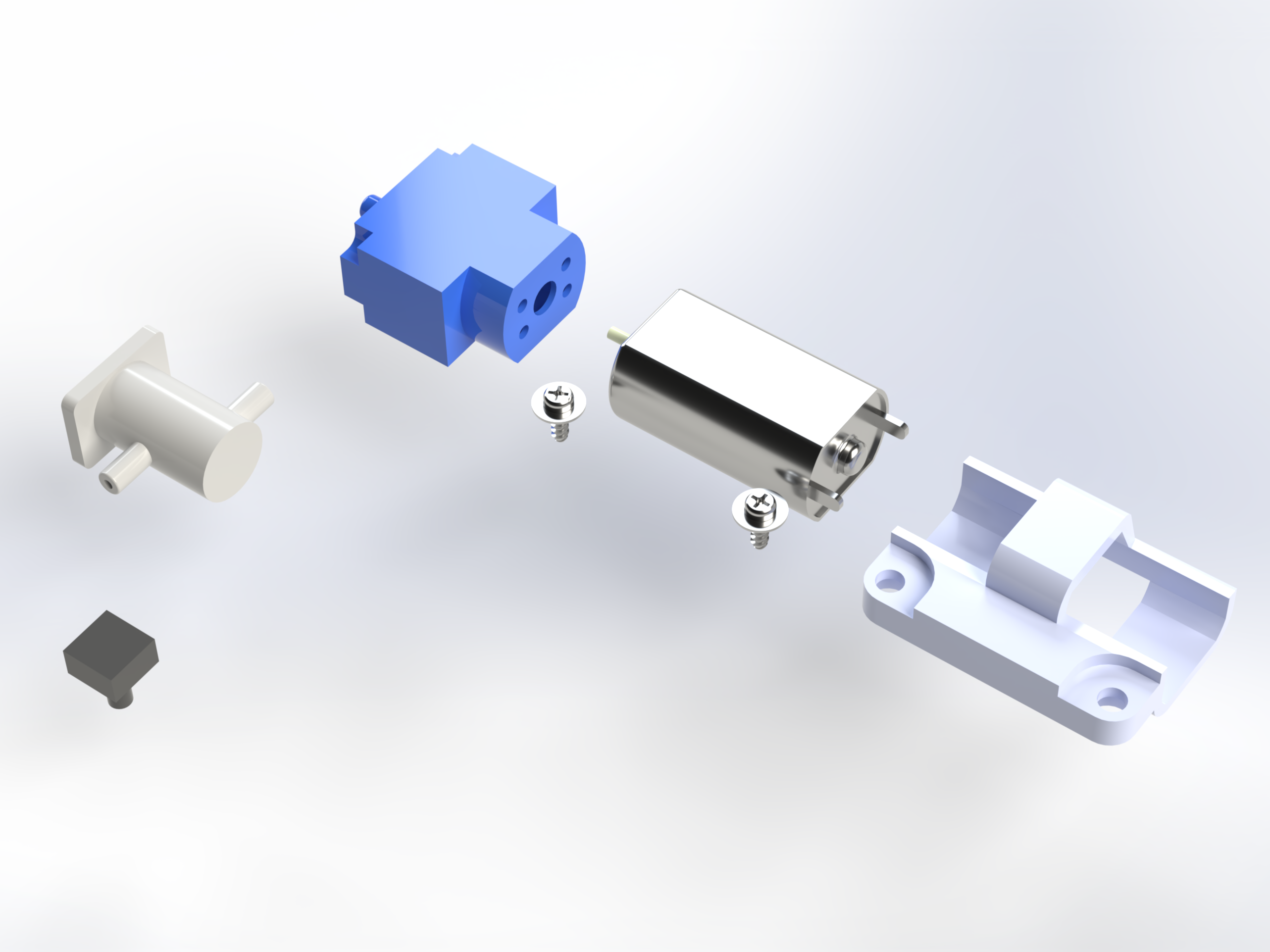

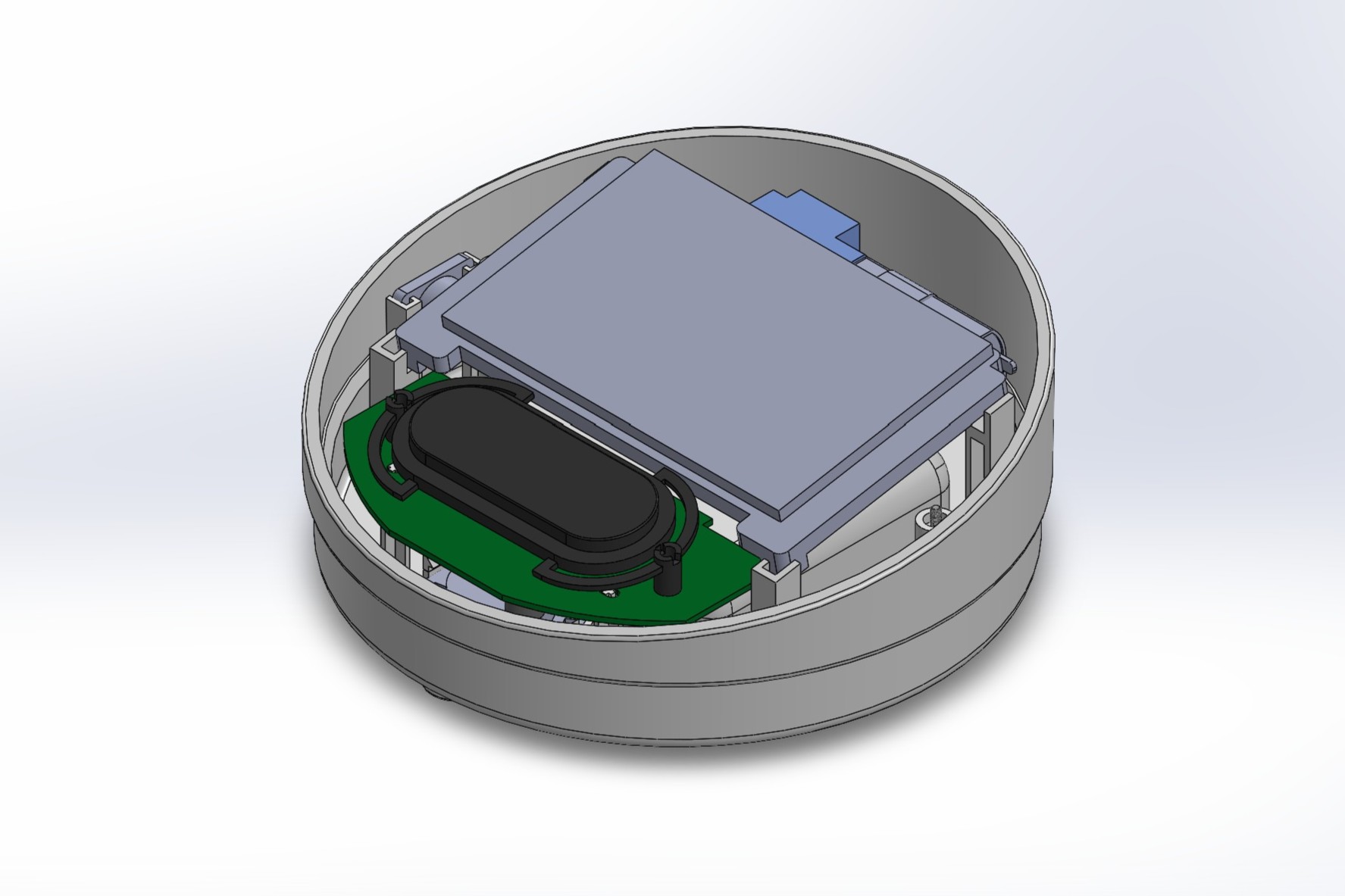

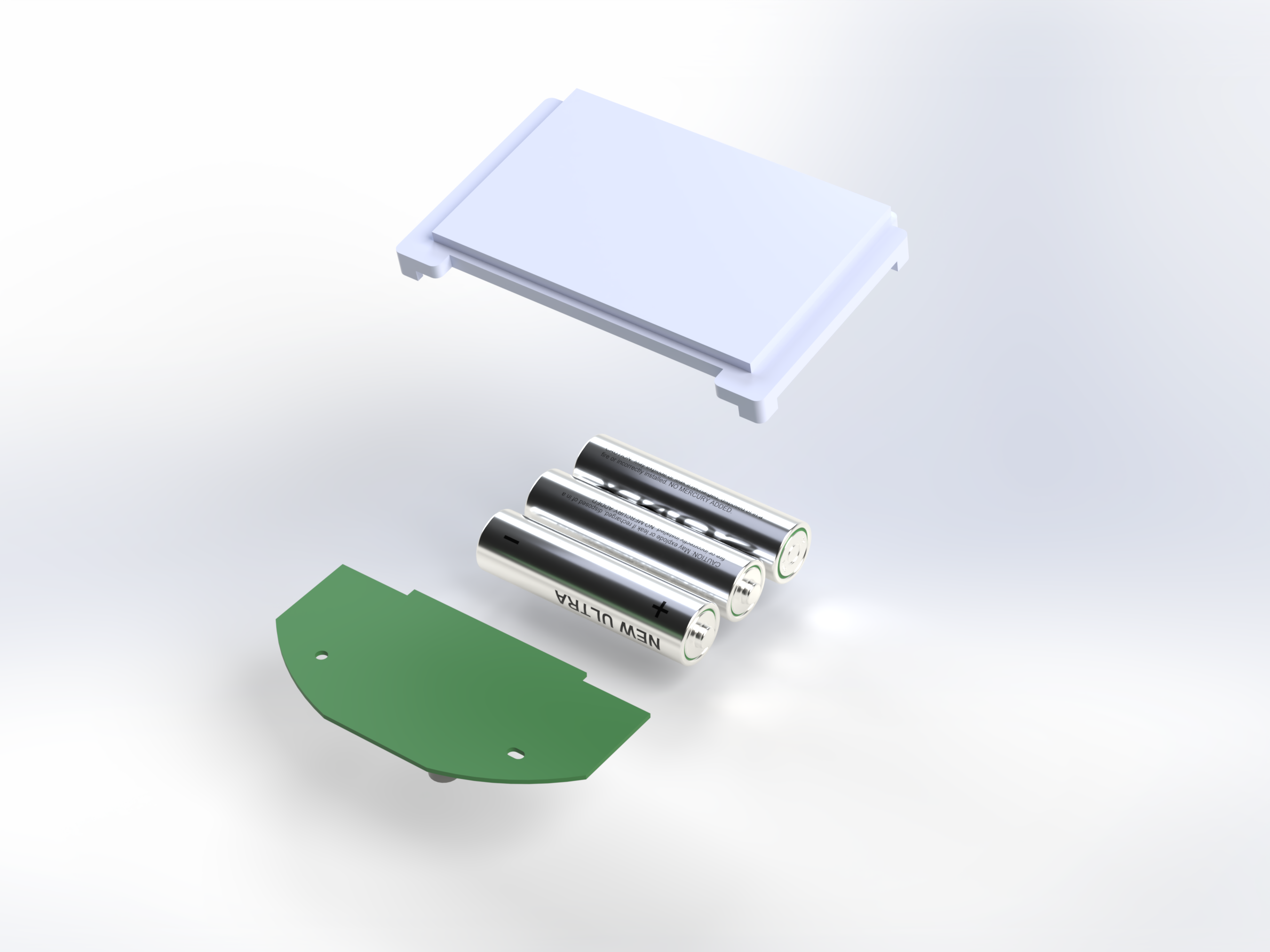

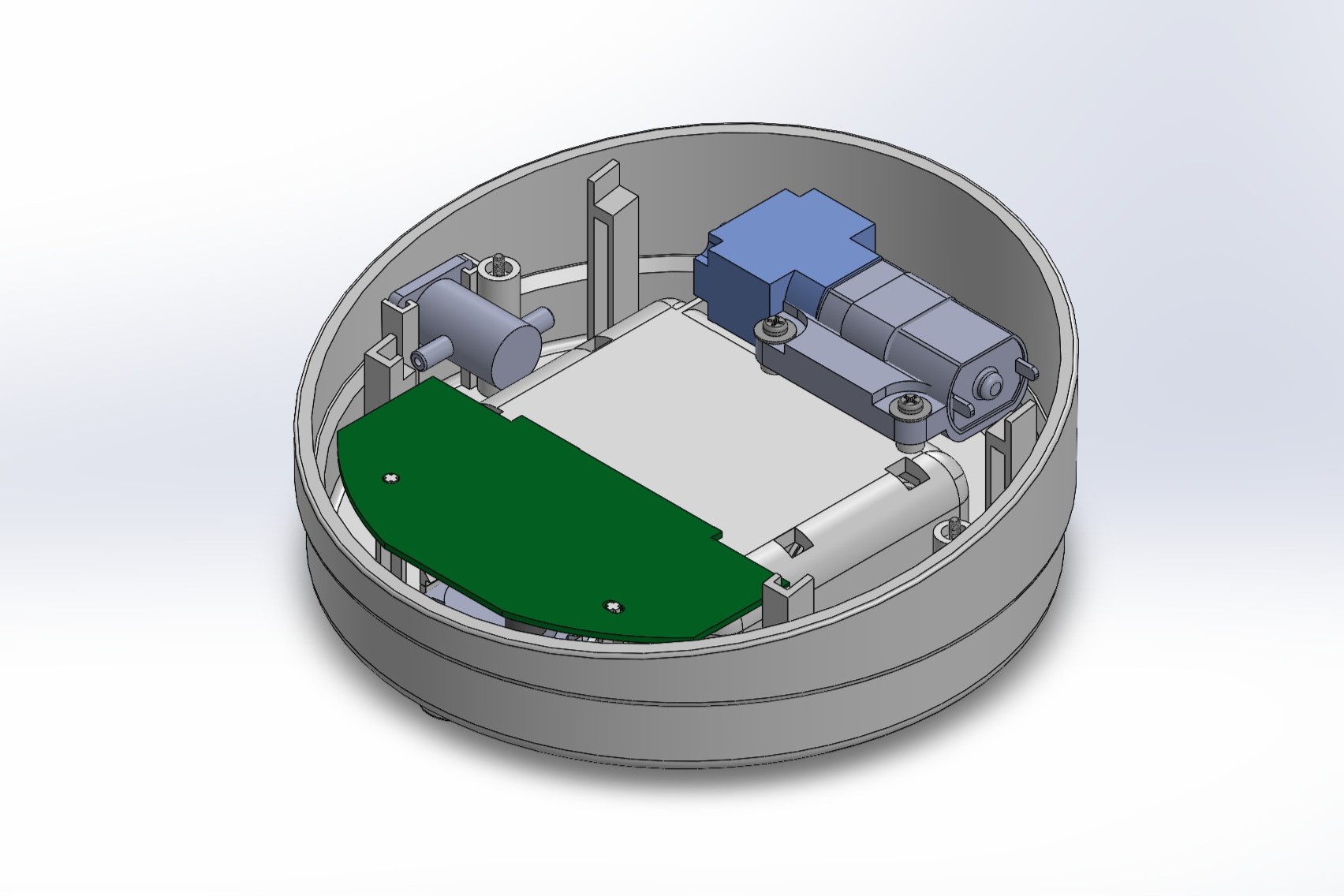

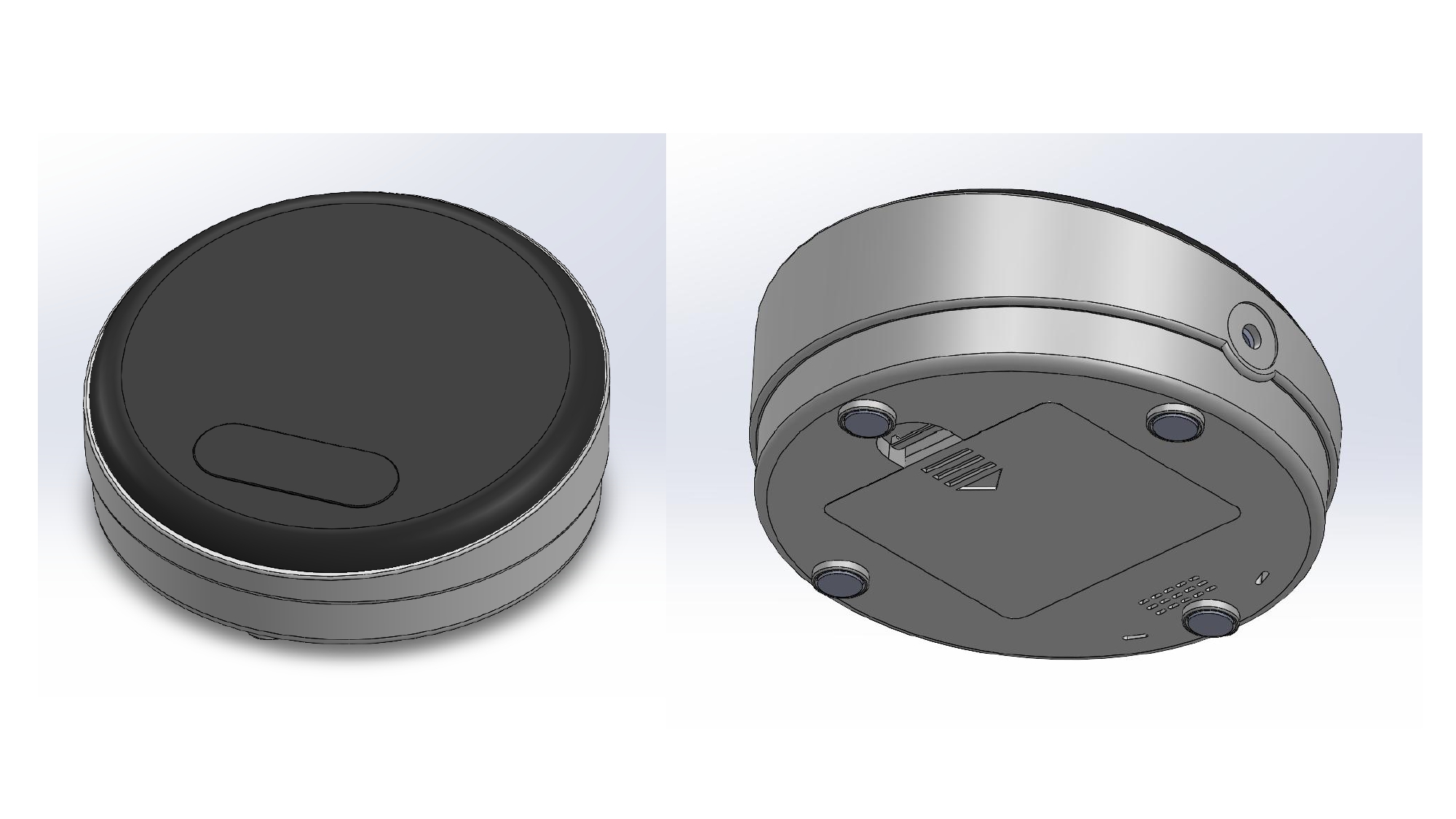

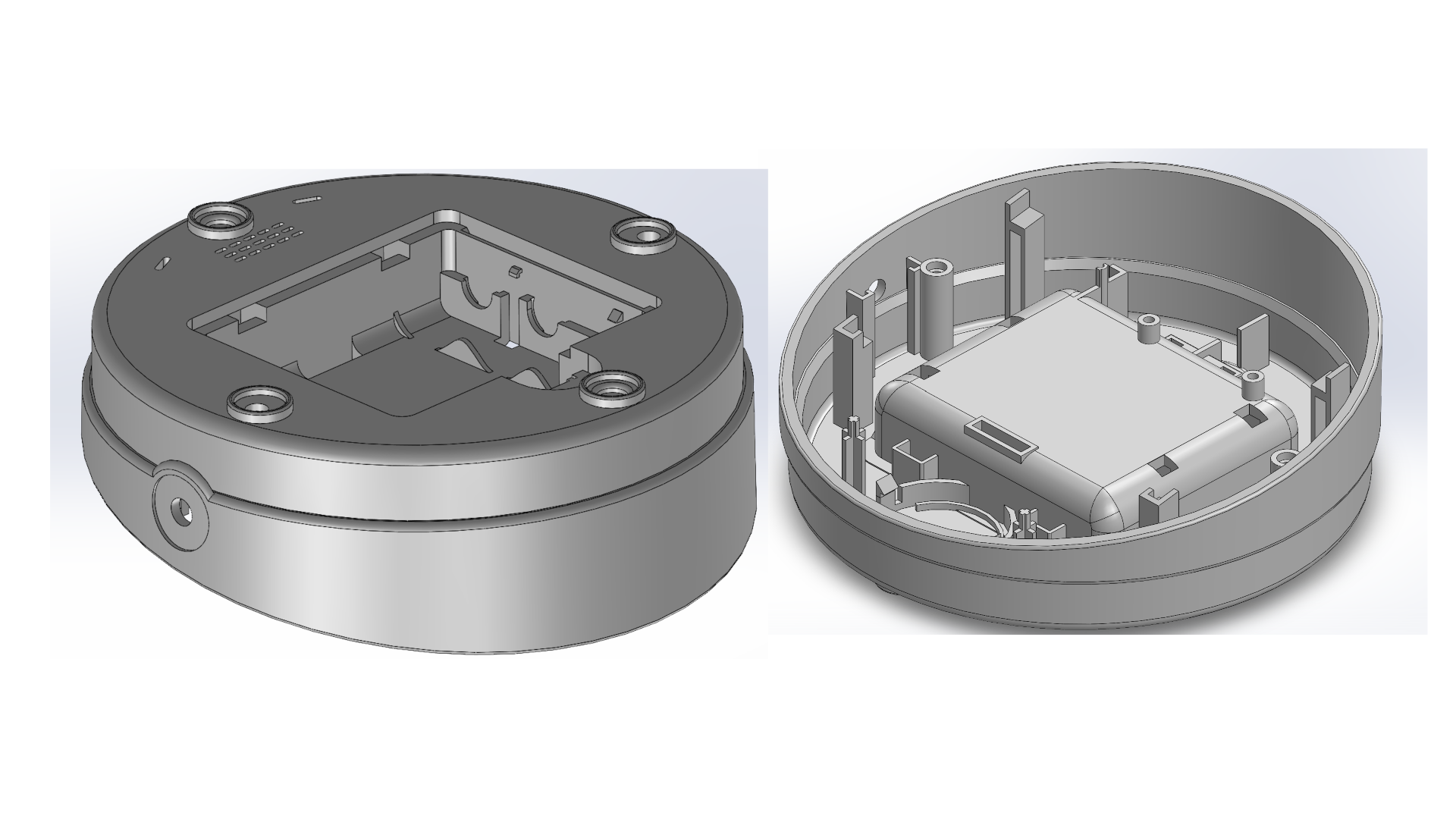

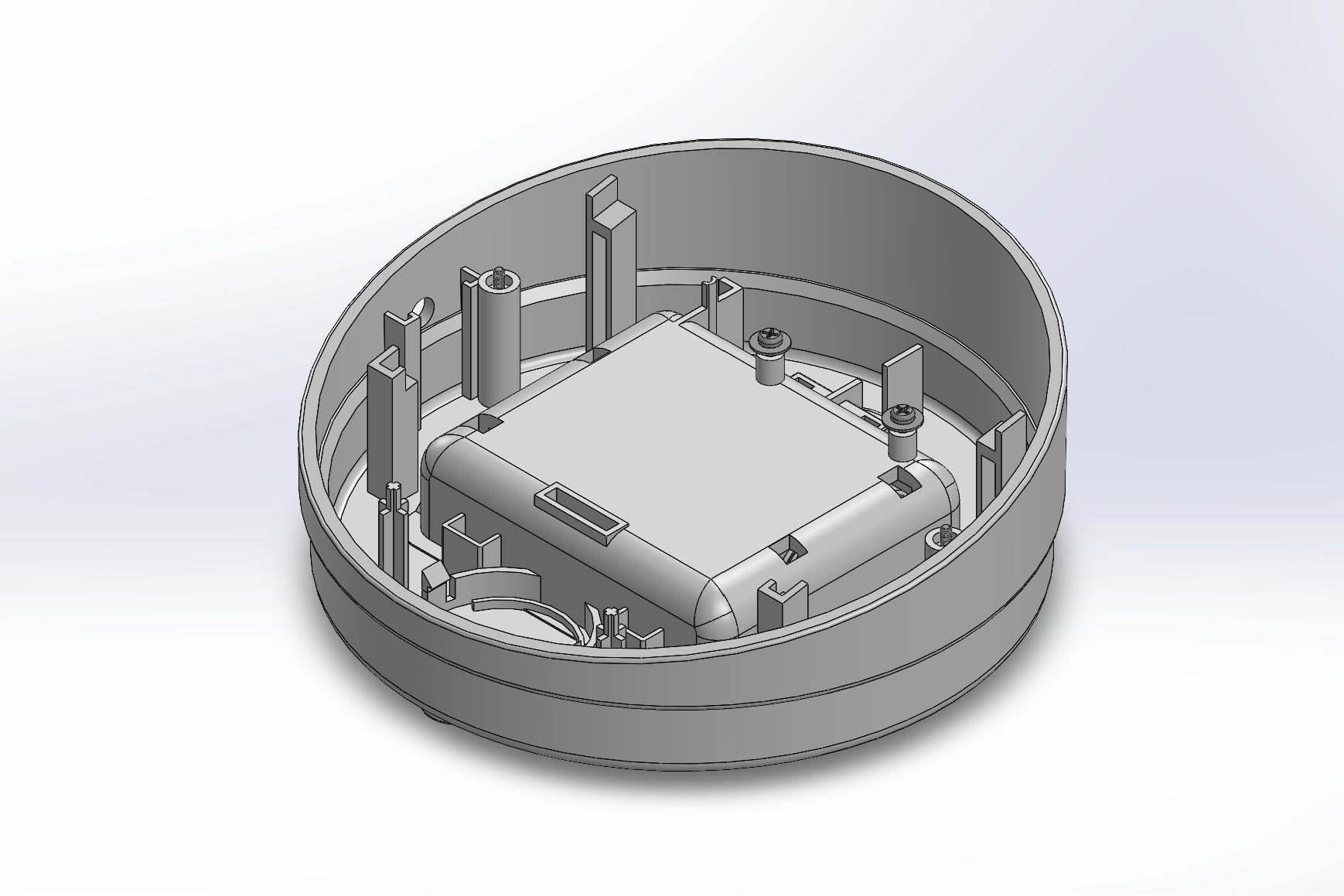

CAD Modeling: Measured and modeled 12 distinct components
using SOLIDWORKS.
-
Simulation & Animation: Utilized SOLIDWORKS Visualize to
create a 3D animation demonstrating the pressure measurement system.
-
Technical Report: Co-authored a 44-page engineering
report detailing the system’s operation. The report concluded with a set of proposed
design modifications to enhance the device.
Technologies Used
SOLIDWORKS
SOLIDWORKS
Visualize
Reverse Engineering Report
Loading PDF and generating
previews...

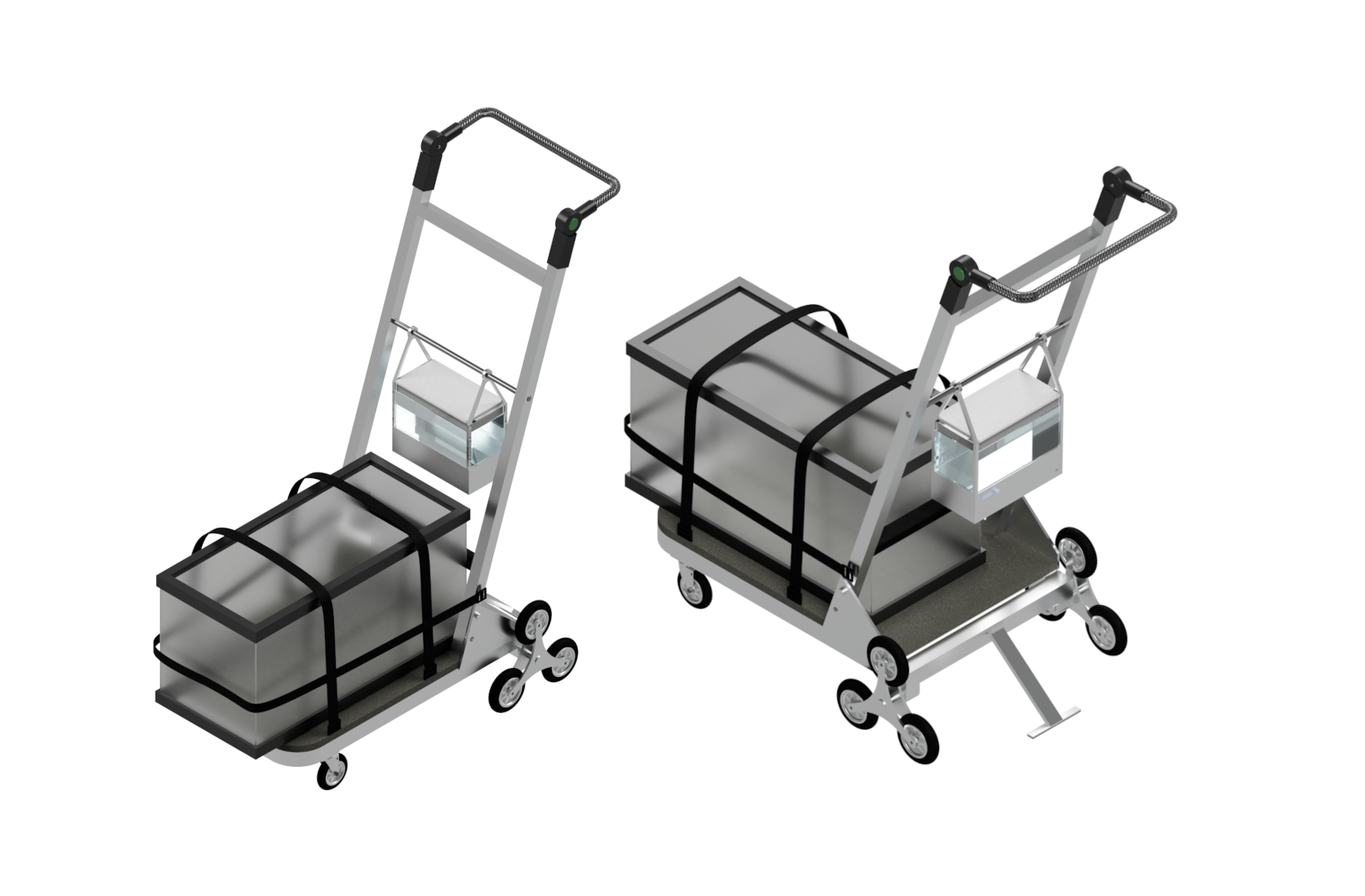

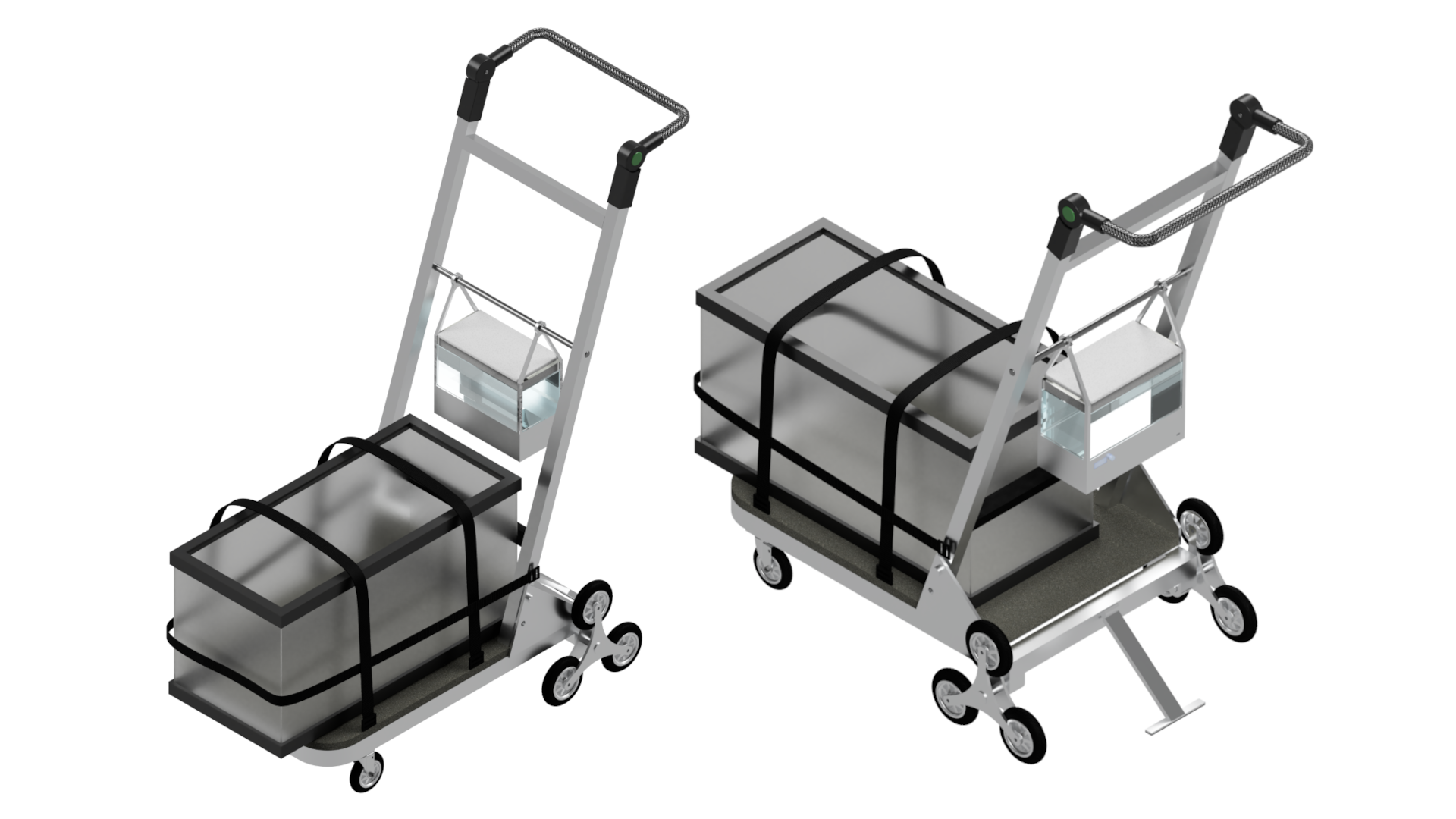

Fishtank Transport Device
A dolly-style system designed to safely move aquariums while keeping
fish healthy during transport
About this project
Project Problem: College students living in dorms are
typically only allowed to keep fish as pets, but there's no practical way to bring a fish
tank home for the holidays. No commercial product existed to transport fish tanks safely
from indoors to outdoors to a car
-
Solution: A dolly-style transport device that works
similarly to a hand truck — the fish tank is drained, strapped to the base, while the
fish ride in a separate heated holding tank.
-
Operation: Operates with a single adult user and meets
principles of Universal Design. Accommodates any off-the-shelf tank up to 10 gallons
and folds flat for easy storage in a dorm room or car trunk.
-
Key design components:
- Aluminum frame: Foldable and adjustable
to fit various tank sizes with padded back brace to protect tank during transport
- Heated holding tank: 1.5-gallon acrylic tank with a
battery-powered heater, thermistor, LCD display, and pendulum mechanism to stay
level on stairs
- Stair-climber wheels: Triple-wheel rear casters made
of solid rubber on stainless steel — rotate to climb steps and curbs without
lifting
- Adjustable handle: Hollow aluminum bar adjustable
from 35 to 44 inches with knerled grip and two-button safety lock; folds inward for
storage
- Tank straps: Waterproof synthetic rubber ladder-lock
straps — two over the top, one around the side with no tools needed to adjust
- EPDM foam pad: 1/8-inch closed-cell foam base absorbs
vibrations and grips the tank securing it
By the numbers
- Total weight: 38.2 lbs
- Push force on a ramp: 5.5 lbs
- Battery life (extreme cold): 4+ hrs
- Max tank size: 10 gal
Strengths & limitations
-
Strengths
- Folds flat — no tools needed
- Works on stairs and ramps
- 10+ hour battery in normal tempatures
- Fits through any standard door
- Adapts to any tank up to 10 gal
-
Limitations
- High upfront cost (~$140+ for holding tank alone)
- Moisture risk near electronics
- Draining the tank is extra work
- Holding tank is relatively small (1.5 gal)
